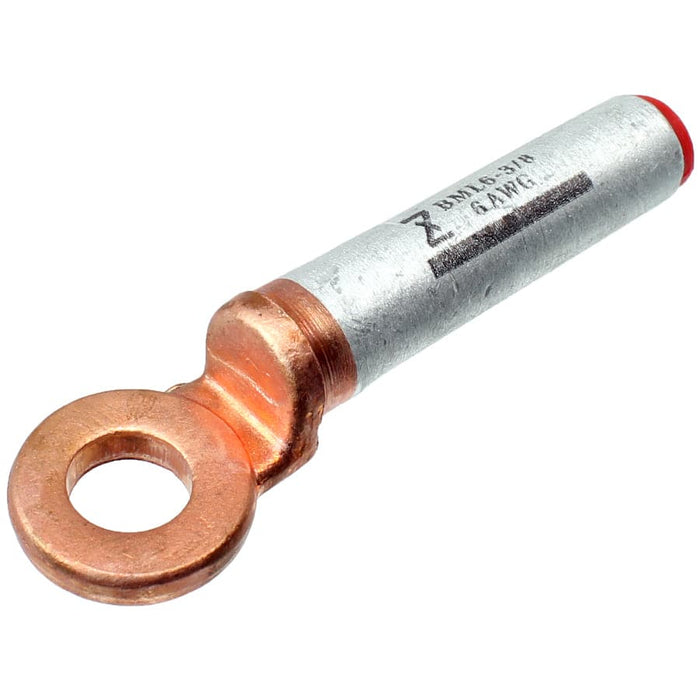

BML16-10 - 6 AWG Bi-metal Compression Lugs, 3/8" Stud, 1 Piece
Precio original
$4.82
-
Precio original
$4.82
Precio original
$4.82
$4.82
-
$4.82
Precio actual
$4.82
SKU BML16-10
Disponibilidad:
en stock, listo para ser enviado
Bimetallic (or Bi-metal lugs) are specialized electrical connectors designed to securely join aluminum cables to copper busbars or terminals, preventing galvanic corrosion. They feature a friction-welded construction with an aluminum barrel for the conductor and a copper palm for the connection point.
Dimensions & Features:
| Wire Size: | 6 AWG |
| A: | 75.0mm (2.95") |
| B: | 32.0mm (1.30") |
| D: | 5.5mm (0.22") |
| E: | 20.0mm (0.79") |
| G: | 24.0mm (0.94") |
| F: | 4.5mm (0.18") |
| Terminal Material: | Aluminum and Copper |
| Stud Size: | 3/8" |
| Operating Temperature: | -40oC - 100oC |
Product Drawing:
Cross References
Cross Reference Parts:
None:
