30-1/2" Extra Heavy Duty Cable Ties, 175-lb Tensile Strength, Natural, UL Approved, 100-Pack - CTEHD780N

Agotado
Precio original $0.00 - Precio original $0.00
Precio original
$0.00
$0.00 - $0.00
Precio actual $0.00
SKU CTEHD780N
Disponibilidad:
Agotado
Pack Quantity: 100 Pieces
false
Sold Out - Click to Inquire!

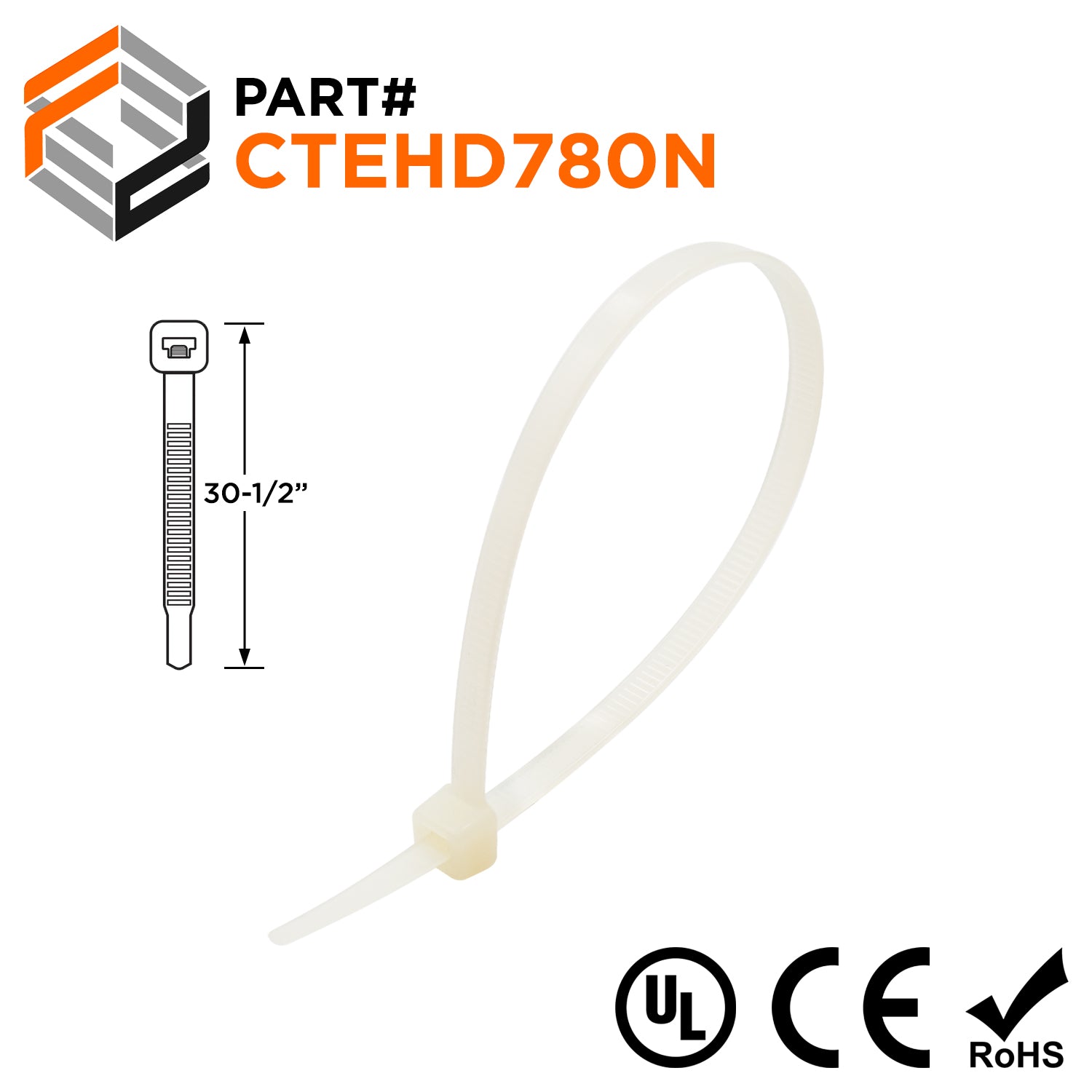

NYLON CABLE TIES - EXTRA HEAVY DUTY SERIES

A cable tie is a band or length of strap, manufactured from materials known as polyamides (Nylon 6/6). The width, length, and head of the cable tie has a ratcheting mechanism, that allows for locking or bundling items together.

These cable ties have an excellent resistance to oils, oil derivatives, and chloride solvents. Limited resistance to acids. No resistance to phenols.

DIMENSIONS & FEATURES:

Length: 30.71" (780.00mm)
Width: 0.35" (8.80mm)
Color: Natural
Maximum Bundle Diameter: 9.27" inches (235.50mm)
Minimum Bundle Diameter: 0.33" inch (8.50mm)
Tensile Strength: 175lbs (79.37kg)
Material: UL Approved 94 V-2 Nylon 6/6
Material Brand: Dupont, Ascend
Flammability Rating: UL 94 V-2
Gamma Resistance: 1x10 Rads
Operating Temperature: -40oC to 85oC (-40oF to 185oF)
Installation Temperature: -14oF to 185oF (-10oC to 85oC)
Max Sustainable Temperature (Short Time): 230oF (110oC)
UL Approved: Yes
TUV Approved: Yes
REACH Compliant: Yes
RoHS Compliant: Yes


DRAWING:



DOCUMENT FILE:




COMPARE TO THESE PARTS:

×
