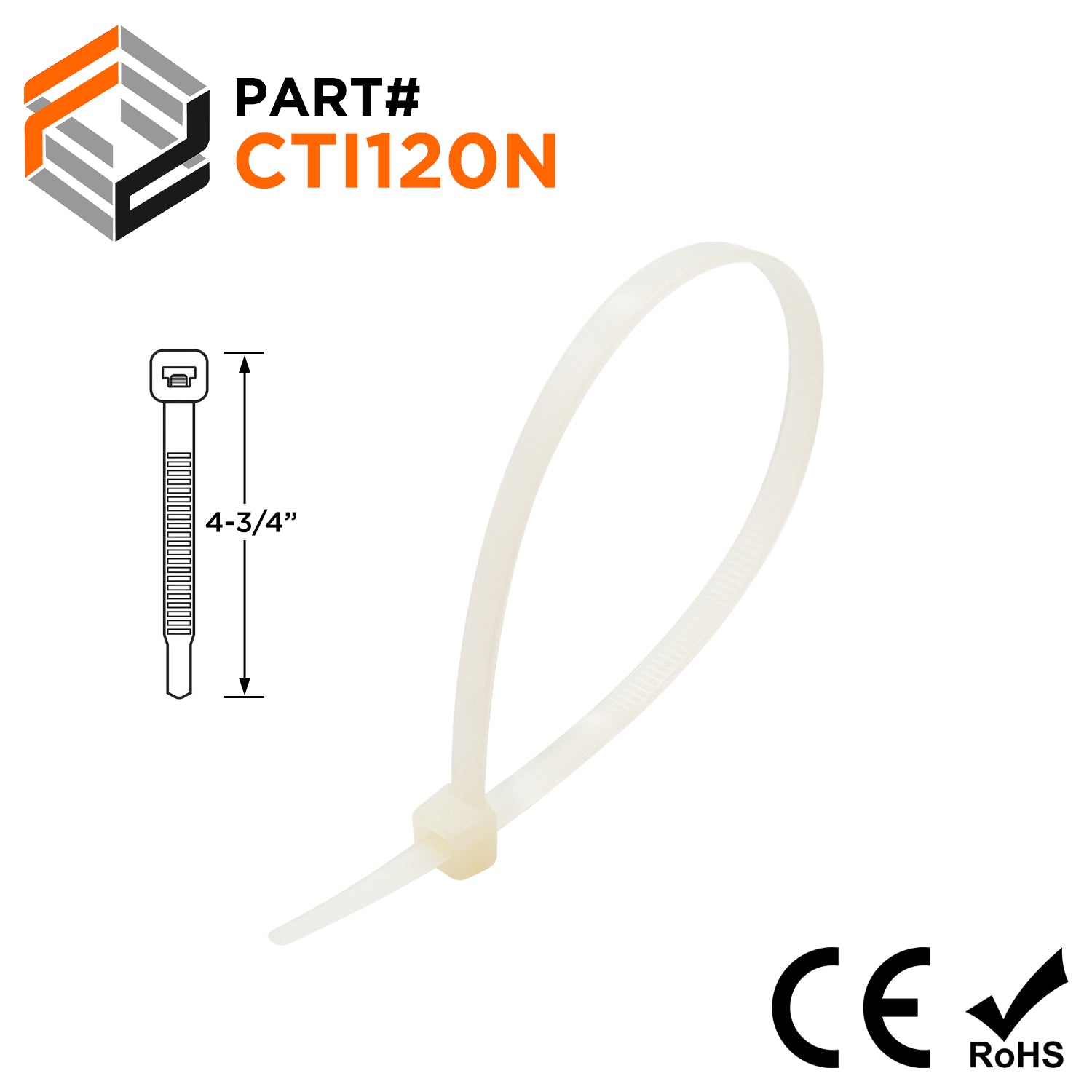

4-3/4" Intermediate Cable Ties, 40-lb Tensile Strength, Natural, 100-Pack - CTI120N

Precio original $1.58 - Precio original $1.58
Precio original
$1.58
$1.58 - $1.58
Precio actual $1.58
SKU CTI120N
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

NYLON CABLE TIES - INTERMEDIATE SERIES

A cable tie is a band or length of strap, manufactured from materials known as polyamides (Nylon 6/6). The width, length, and head of the cable tie has a ratcheting mechanism, that allows for locking or bundling items together.

These cable ties have an excellent resistance to oils, oil derivatives, and chloride solvents. Limited resistance to acids. No resistance to phenols.


DIMENSIONS & FEATURES:

Length: 4-3/4 inches (120mm)
Width: 0.14 inches (3.6mm)
Color: Natural
Maximum Bundle Diameter: 1.10 inches (28mm)
Minimum Bundle Diameter: 0.14 inches (3.6mm)
Tensile Strength: 40lbs (18kg)
Material: Nylon 66
Material Brand: Dupont, Ascend
Flammability: UL 94 V-2
Gamma Resistance: 1x10 Rads
Operating Temperature: -40oF to 185oF (-40oC to 85oC)
Installation Temperature: -14oF to 185oF (-10oC to 85oC)
Max Sustainable Temperature (Short Time): 230oF (110oC)
TUV Approved: Yes
REACH Compliant: Yes
RoHS Compliant: Yes


DRAWING:



DOCUMENT FILE:
