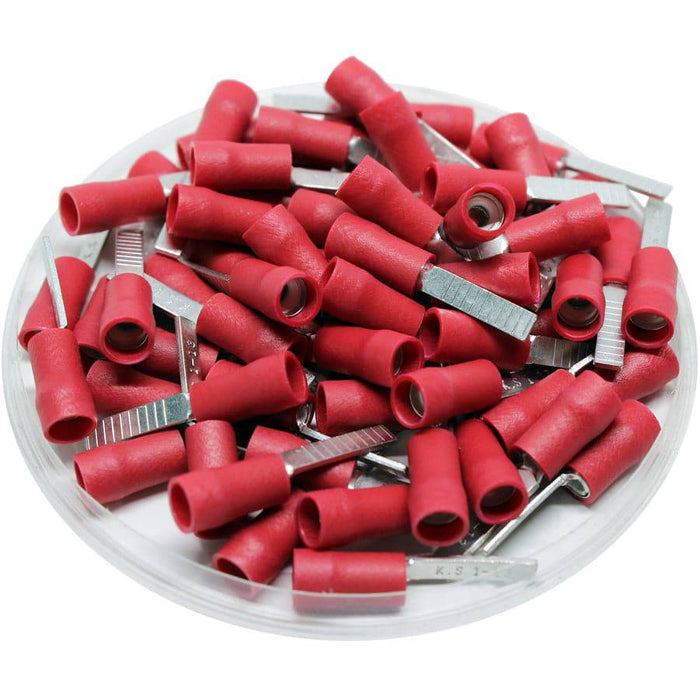

DBD1-13 - Vinyl Insulated Flat Blade Terminal - Double Crimp - 22-16 AWG - Red
Precio original
$11.07
-
Precio original
$11.07
Precio original
$11.07
$11.07
-
$11.07
Precio actual
$11.07
SKU DBD1-13
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 22-16 AWG |
| Color: | Red |
| T: | 0.8mm (0.03") |
| L: | 23.3mm (0.92") |
| F: | 13mm (0.51") |
| E: | 10.5mm (0.41") |
| W: | 3.0mm (0.12") |
| D: | 4.2mm (0.17") |
| D1: | 1.7mm (0.07") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Maximum Rating: | 105°C - 600 Volts |
| Max Electrical Rating: | 18AMP |
| UL Recognized: | Yes |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
Product Drawing:
