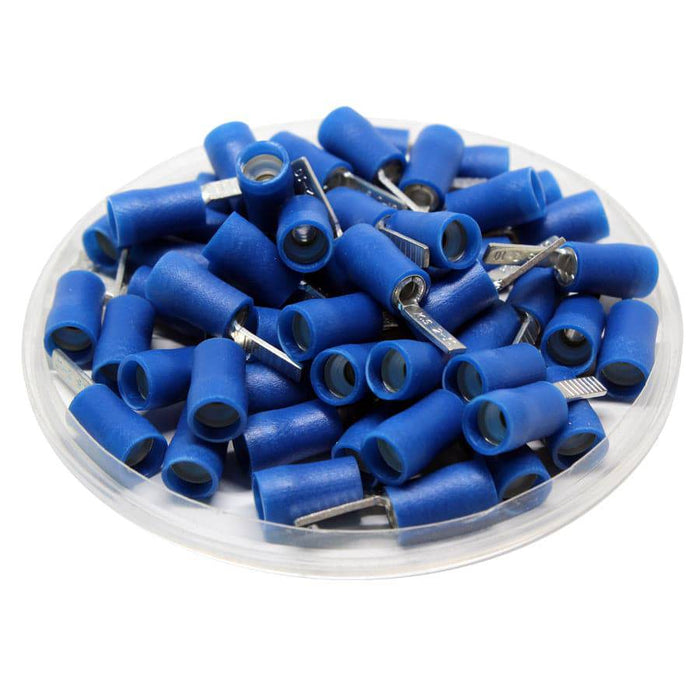

DBD2-10 - Vinyl Insulated Flat Blade Terminal - Double Crimp - 16-14 AWG - Blue

Precio original $11.87 - Precio original $11.87
Precio original
$11.87
$11.87 - $11.87
Precio actual $11.87
SKU DBD2-10
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.

Dimensions & Features:

Wire Range: 16-14 AWG
Color: Blue
T: 0.8mm (0.03")
L: 20.3mm (0.80")
F: 10mm (0.39")
E: 10.5mm (0.41")
W: 2.4mm (0.09")
D: 5.0mm (0.20")
D1: 2.3mm (0.09")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Maximum Rating: 105°C - 600 Volts
Max Electrical Rating: 30AMP
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
