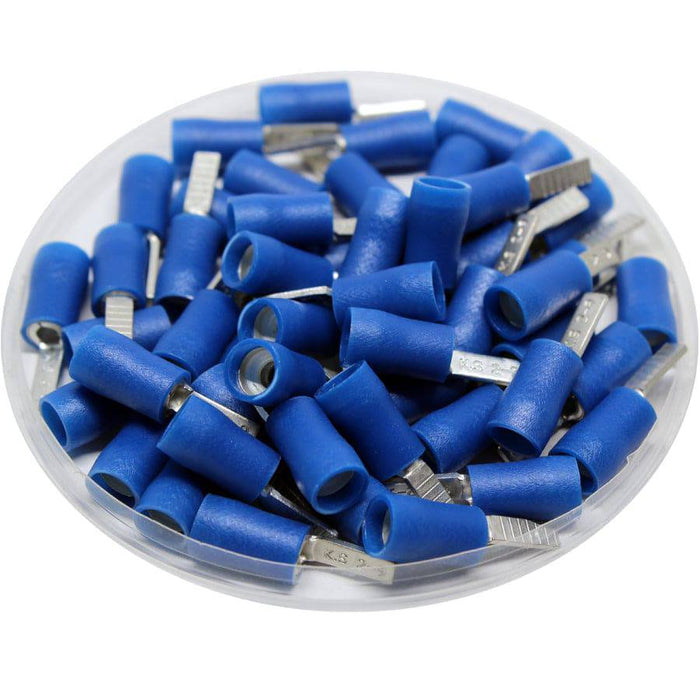

DBD2-9 - Vinyl Insulated Flat Blade Terminal - Double Crimp - 16-14 AWG - Blue
Precio original
$13.64
-
Precio original
$13.64
Precio original
$13.64
$13.64
-
$13.64
Precio actual
$13.64
SKU DBD2-9
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 16-14 AWG |
| Color: | Blue |
| T: | 0.8mm (0.03") |
| L: | 19.3mm (0.76") |
| F: | 9.0mm (0.35") |
| E: | 10.5mm (0.41") |
| W: | 2.8mm (0.11") |
| D: | 5.0mm (0.20") |
| D1: | 2.3mm (0.09") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Maximum Rating: | 105°C - 600 Volts |
| Max Electrical Rating: | 30AMP |
| UL Recognized: | Yes |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
