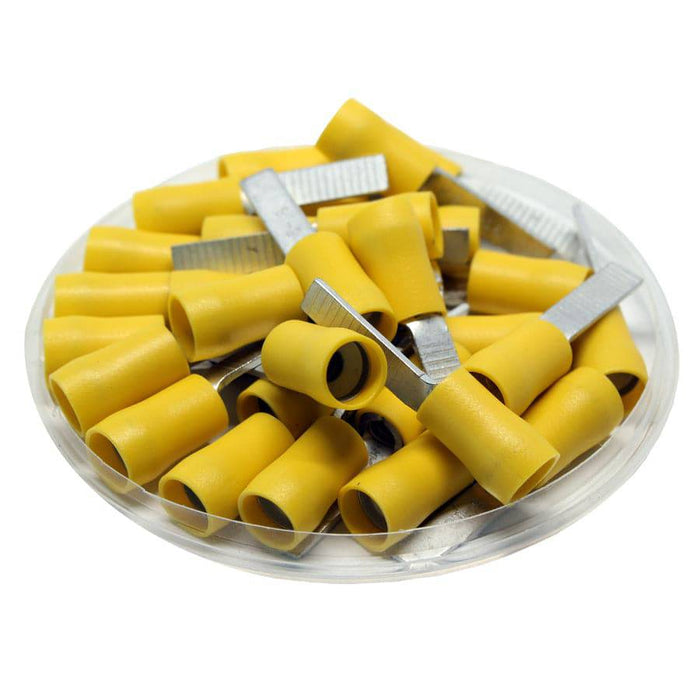

DBD5-18 - Vinyl Insulated Flat Blade Terminal - Double Crimp - 12-10 AWG - Yellow
Precio original
$29.56
-
Precio original
$29.56
Precio original
$29.56
$29.56
-
$29.56
Precio actual
$29.56
SKU DBD5-18
Disponibilidad:
en stock, listo para ser enviado
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 12-10 AWG |
| Color: | Yellow |
| T: | 1.0mm (0.03") |
| L: | 31mm (1.22") |
| F: | 18mm (0.71") |
| E: | 13mm (0.51") |
| W: | 4.5mm (0.18") |
| D: | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Maximum Rating: | 105°C - 600 Volts |
| Max Electrical Rating: | 50AMP |
| UL Recognized: | Yes |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
