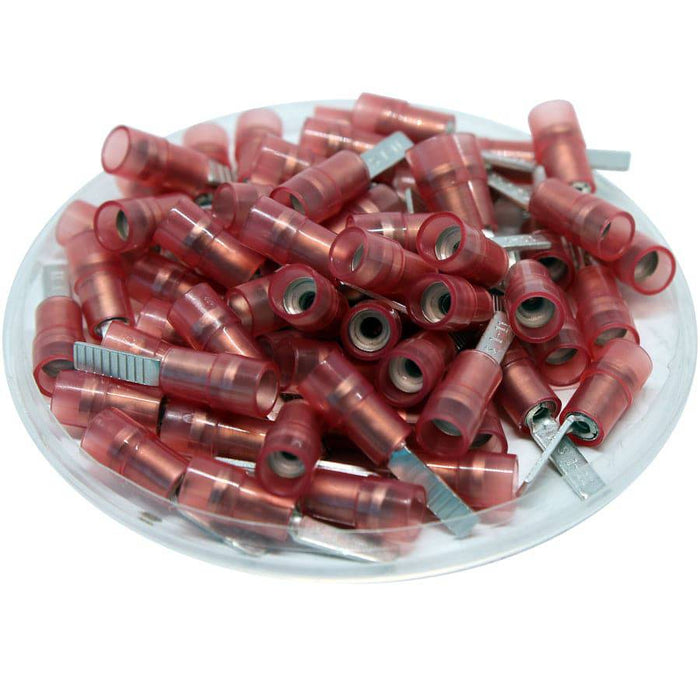

DBNYD1-11 - Nylon Insulated Flat Blade Terminal - Double Crimp - 22-16 AWG - Red
Precio original
$13.04
-
Precio original
$13.04
Precio original
$13.04
$13.04
-
$13.04
Precio actual
$13.04
SKU DBNYD1-11
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 22-16AWG |
| Terminal Material: | Tin-Plated Copper |
| Insualtion Material: | Nylon |
| Color: | Red |
| Maximum Rating: | 600 Volts - 105oC |
| Max Electrical Rating: | 18AMP |
| T: | 0.75mm (0.03") |
| L: | 21.8mm (0.86") |
| F: | 11.0mm (0.43") |
| E: | 11.0mm (0.43") |
| W: | 3.0mm (0.12") |
| D: | 4.0mm (0.16") |
| D1: | 1.7mm (0.07") |
| UL Recognized: | Yes |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
