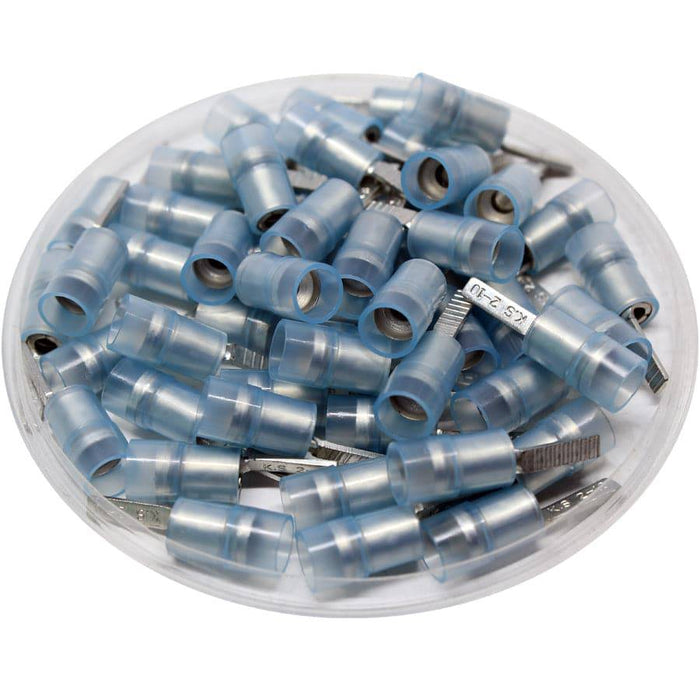

DBNYD2-10 - Nylon Insulated Flat Blade Terminal - Double Crimp - 16-14 AWG - Blue

Agotado
Precio original $11.09 - Precio original $11.09
Precio original
$11.09
$11.09 - $11.09
Precio actual $11.09
SKU DBNYD2-10
Disponibilidad:
Agotado
Pack Quantity: 100 Pieces
false
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.

Dimensions & Features:

Wire Range: 16-14AWG
Terminal Material: Tin-Plated Copper
Insualtion Material: Nylon
Color: Blue
Maximum Rating: 600 Volts - 105oC
Max Electrical Rating: 30AMP
T: 0.8mm (0.03")
L: 20.8mm (0.82")
F: 10.0mm (0.39")
E: 11.0mm (0.43")
W: 2.4mm (0.09")
D: 4.5mm (0.18")
D1: 2.3mm (0.09")
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None
