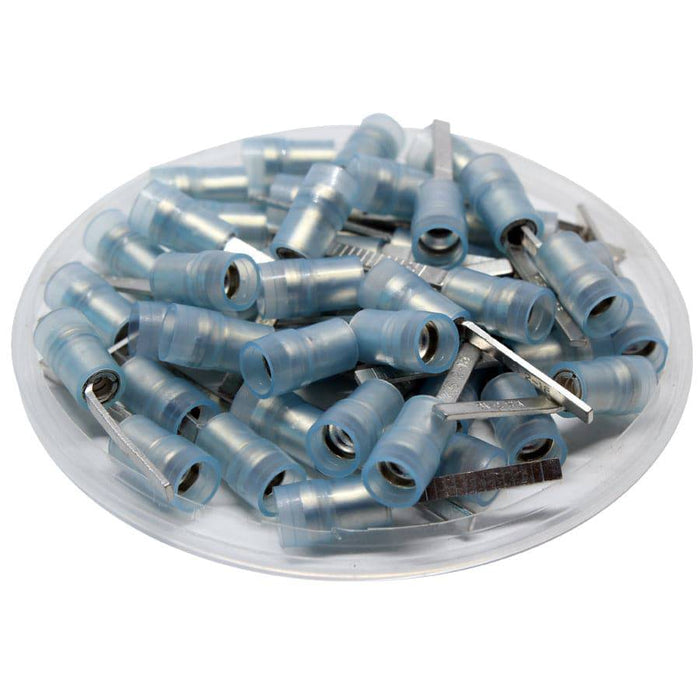

DBNYD2-18 - Nylon Insulated Flat Blade Terminal - Double Crimp - 16-14 AWG - Blue

Precio original $14.60 - Precio original $14.60
Precio original
$14.60
$14.60 - $14.60
Precio actual $14.60
SKU DBNYD2-18
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.

Dimensions & Features:

Wire Range: 16-14AWG
Terminal Material: Copper
Insualtion Material: Nylon
Color: Blue
Seam: Butted
Maximum Rating: 600 Volts - 105oC
Max Electrical Rating: 30AMP
T: 0.8mm (0.03")
L: 28.8mm (1.10")
F: 18.0mm (0.71")
E: 11.0mm (0.43")
W: 2.2mm (0.09")
D: 4.5mm (0.18")
D1: 2.3mm (0.09")
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None
