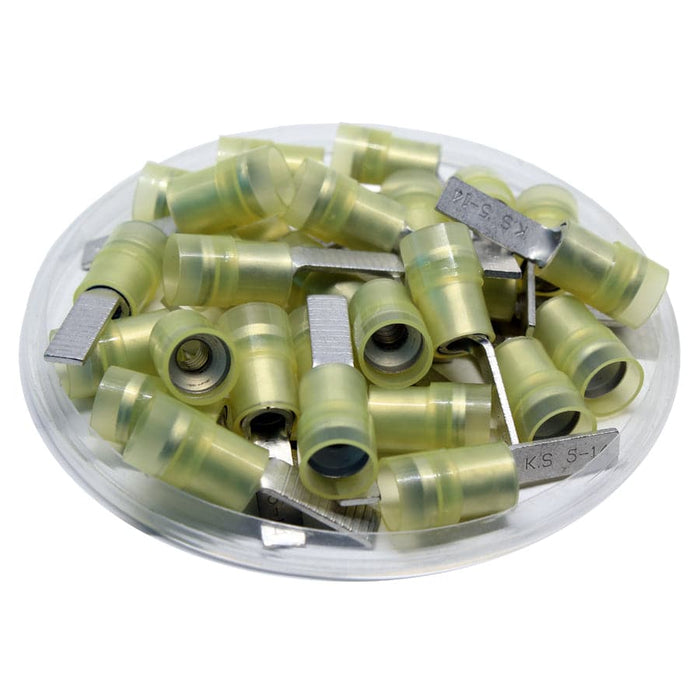

DBNYD5-14 - Nylon Insulated Flat Blade Terminal - Double Crimp - 12-10 AWG - Yellow

Precio original $21.20 - Precio original $21.20
Precio original
$21.20
$21.20 - $21.20
Precio actual $21.20
SKU DBNYD5-14
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 50 Pieces
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.

Dimensions & Features:

Wire Range: 12-10AWG
Terminal Material: Copper
Insualtion Material: Nylon
Color: Yellow
Maximum Rating: 600 Volts - 105oC
Max Electrical Rating: 60AMP
T: 1.0mm (0.04")
L: 27.0mm (1.10")
F: 14.0mm (0.55")
E: 13.0mm (0.51")
W: 4.5mm (0.18")
D: 6.4mm (0.25")
D1: 3.4mm (0.13")
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None
