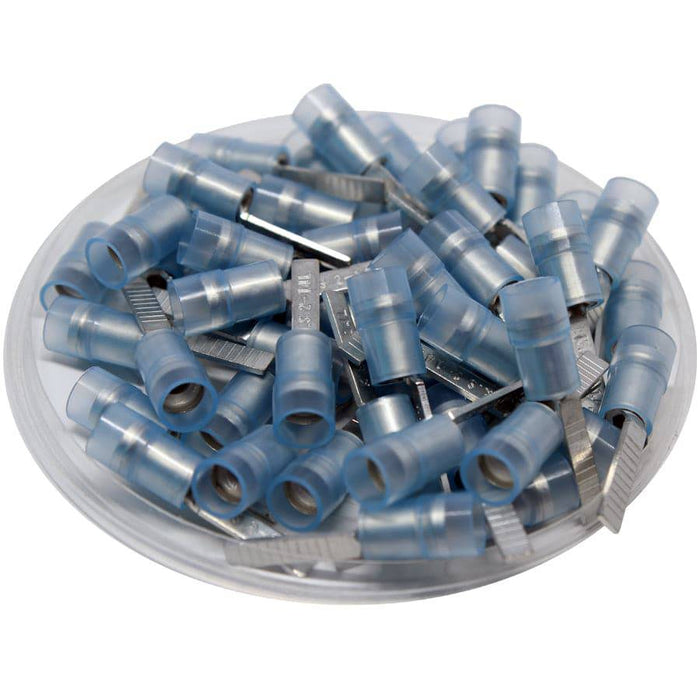

DBNYDL2-14 - Nylon Insulated Flat Blade Terminal - Double Crimp - 16-14 AWG - Blue

Precio original $13.30 - Precio original $13.30
Precio original
$13.30
$13.30 - $13.30
Precio actual $13.30
SKU DBNYDL2-14
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
true
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.

Dimensions & Features:

Wire Range: 16-14AWG
Insulation: Nylon
Color: Blue
Seam: Butted
Maximum Rating: 600 Volts - 105oC
Max Electrical Rating: 30AMP
T: 0.8mm (0.03")
L: 24.8mm (0.98")
F: 14.0mm (0.55")
E: 11.0mm (0.43")
W: 3.0mm (0.12")
D: 4.5mm (0.18")
D1: 2.3mm (0.09")
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None
