16 to 14 AWG Ring Terminals, #10 Stud, Tin Plated Brass, Open Barrel, 100 Pieces - DJ431-5C-T - Ferrules Direct

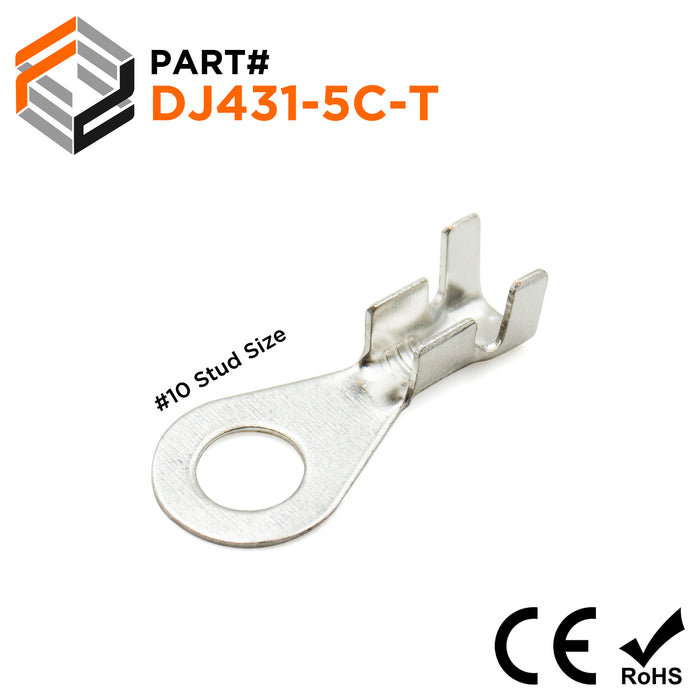

DJ431-5C-T - 16 to 14 AWG Ring Terminals, #10 Stud, Tin Plated Brass, Open Barrel, 100 Pieces

$6.05 - $6.05
$6.05
$6.05 - $6.05
$6.05
SKU DJ431-5C-T

Quantity: 100 Pieces

Disponibilidad:
en stock, listo para ser enviado
true

OPEN BARREL STYLE RING TERMINALS

Open barrel terminals have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.

DIMENSIONS & FEATURES:

Terminal Type: Ring Terminals (Open Barrel)
Wire Size: 16 to 14 AWG
Stud Size: #10 Stud (5.5mm)
W: 10mm (0.39")
D: 5.5mm (0.22")
E: 17mm (0.67")
Material: Tin Plated Brass
Surface Treatment: Standard Chemical Treatment
CE Certified: Yes
RoHS Compliant: Yes



PRODUCT DRAWING:
