DJ610-2.8-2x0.5-T - Tin Plated Brass Quick Connect Male Solder Connectors, 2.8mm Tab, 100 pieces
Precio original
$2.90
-
Precio original
$2.90
Precio original
$2.90
$2.90
-
$2.90
Precio actual
$2.90
SKU DJ610-2.8-2X0.5-T
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
QUICK CONNECT SOLDER CONNECTORS
PCB quick connect male solder connector. The male tab fits into a female quick disconnect terminal. The solder tail attaches to your circuit board. Terminals with a built-in tab support prevent side-to-side motion during termination.
DIMENSIONS & FEATURES:
| NEMA Tab: | 2.8 x 0.5mm (0.110" x 0.020") |
| L: | 13.3mm (0.52") |
| W: | 2.8mm (0.11") |
| T: | 0.5mm (0.019") |
| Material: | Tin Plated Brass |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |

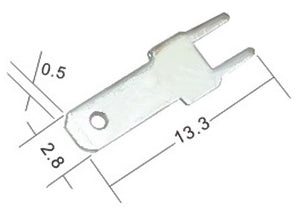

DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
