4.8mm Tab, Quick Connect Male Solder Connectors, Tin Plated Brass, 100 pieces - DJ611-4.8x0.5-T

Precio original $3.00 - Precio original $3.00
Precio original
$3.00
$3.00 - $3.00
Precio actual $3.00
SKU DJ611-4.8x0.5-T
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

QUICK CONNECT SOLDER CONNECTORS

PCB quick connect male solder connector. The male tab fits into a female quick disconnect terminal. The solder tail attaches to your circuit board. Terminals with a built-in tab support prevent side-to-side motion during termination.

DIMENSIONS & FEATURES:

NEMA Tab: 4.8 x 0.5mm (0.19" x 0.020")
L: 14.5mm (0.57")
W: 4.8mm (0.18")
T: 0.5mm (0.020")
Material: Tin Plated Brass
CE Certified: Yes
RoHS Compliant: Yes

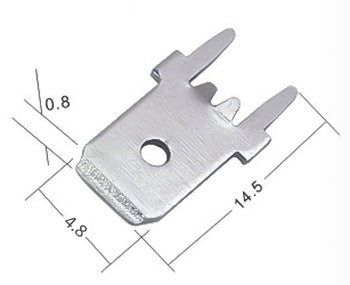

DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
