22 to 20 AWG Male Quick Disconnects, Tin Plated Brass, 6.3 NEMA Tab, 100 Pieces - DJ616-6.3x0.8A-T

Precio original $3.20 - Precio original $3.20
Precio original
$3.20
$3.20 - $3.20
Precio actual $3.20
SKU DJ616-6.3x0.8A-T
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces

OPEN BARREL STYLE QUICK DISCONNECTS

Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.

DIMENSIONS & FEATURES:

Wire Size: 22 to 20 AWG
NEMA Tab: 6.3 x 0.8mm (0.25" x 0.031")
L: 20mm (0.79")
W: 6.35mm (0.25")
T: 0.8mm (0.031")
Material: Tin Plated Brass
CE Certified: Yes
RoHS Compliant: Yes

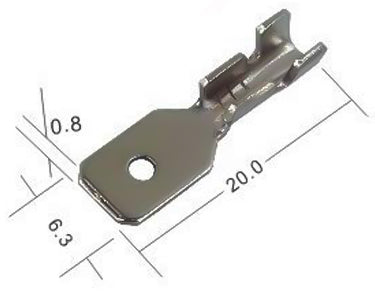

DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
