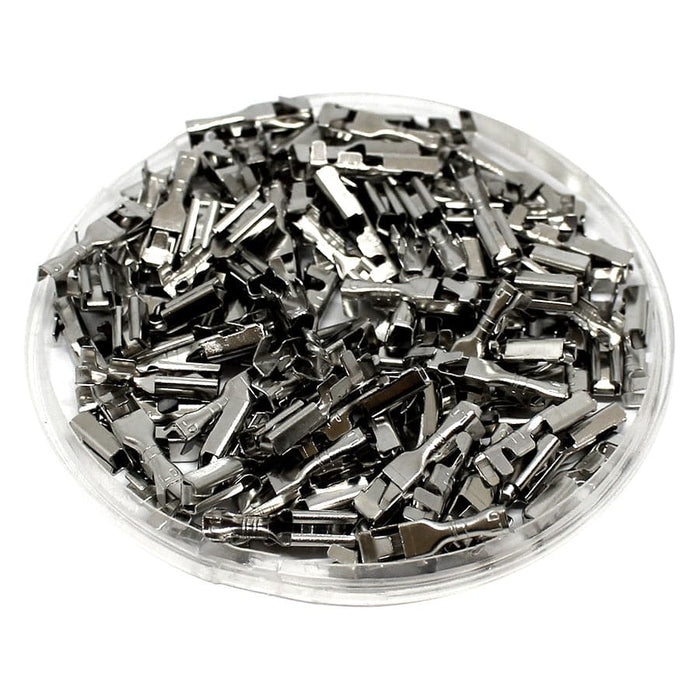

DJ621-E2.8A-T - Tin Plated Female Quick Disconnect with Locking Tab - 22-18 AWG
Agotado
Precio original
$0.71
-
Precio original
$0.71
Precio original
$0.71
$0.71
-
$0.71
Precio actual
$0.71
SKU DJ621E28A
Disponibilidad:
Agotado
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Wire Size: | 22-18 AWG |
NEMA Tab: | 2.8 x 0.8mm (0.11" x 0.031") |
L: | 16mm (0.63") |
W: | 4.0mm (0.16") |
Material: | Tin Plated Brass |
Surface Treatment: | Standard Chemical Treatment |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
