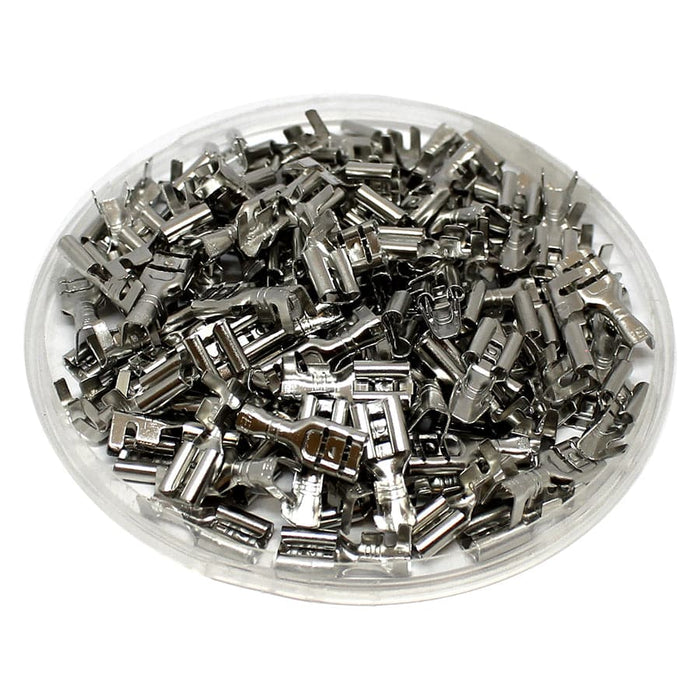

DJ622-D4.8B - 18 to 16 AWG Female Quick Disconnects, No Tin, Non Locking, 100 Pieces
Agotado
Precio original
$0.78
-
Precio original
$0.78
Precio original
$0.78
$0.78
-
$0.78
Precio actual
$0.78
SKU DJ622D48B
Quantity: 100 Pieces
Disponibilidad:
Agotado
Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 18-16 AWG |
| NEMA Tab: | 4.8 x 0.8mm (0.19" x 0.031") |
| L: | 15mm (0.59") |
| W: | 6.0mm (0.24") |
| Material: | Untinned Brass |
| Surface Treatment: | Standard Chemical Treatment |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
