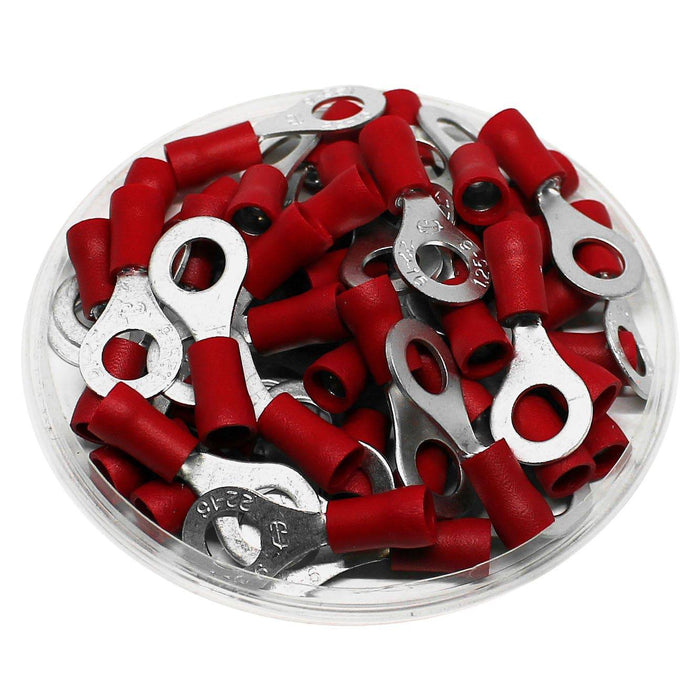

DRVBL6-1 - Vinyl Ring Terminal Brazed Seam 22-16 AWG Red 100/pk - Stud 1/4"
Precio original
$13.89
-
Precio original
$13.89
Precio original
$13.89
$13.89
-
$13.89
Precio actual
$13.89
SKU DRVBL6-1
Disponibilidad:
en stock, listo para ser enviado
Ring tongue design offers a tight and secure connection in high vibration areas, Vinyl insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.
Grainger: 18RA-14
Dimensions & Features:
| T: | 0.8mm (0.03") |
| L: | 20mm (0.79") |
| E: | 10mm (0.39") |
| W: | 11mm (0.43") |
| D | 4mm (0.16") |
| D1: | 1.6mm (0.06") |
| D2: | 6.5mm (0.26") |
| Color: | Red |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105oC) |
| Max Electrical AMP: | 18AMP |
| Stud Size: | 1/4" |
| Crimp: | Double |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:Grainger: 18RA-14
