24 to 10 AWG Wire Ferrules Crimping Tool, Side Load, Trapezoidal Profile - FD2410N

Precio original $44.00 - Precio original $44.00
Precio original
$44.00
$44.00 - $44.00
Precio actual $44.00
SKU FD2410N
Disponibilidad:
en stock, listo para ser enviado
Quantity: 1 Piece
Need to fully certify that your tool is calibrated for optimal crimping? We offer an additional calibration here
true

HIGH PERFORMANCE WIRE FERRULES CRIMPING TOOL

For 30+ years, Miromar tools have been the tools of choice for professional tradesmen and end users who are serious about their hand tools and demand quality at an affordable price. Made of quality materials and backed by our warranty and USA based customer service and technical assistance.

FEATURES & SPECIFICATIONS:

  • Crimping Range: 24 to 10 AWG (0.25-6.00mm²)
    • Standard Ferrules: 24 to 10 AWG (0.25-6.00mm²)
    • Twin Wire Ferrules: 22 to 12 AWG (0.50-4.00mm²)
  • Crimping Profile: Trapezoidal
  • Maximum Ferrule Crimping Length: 1/2" (12mm)

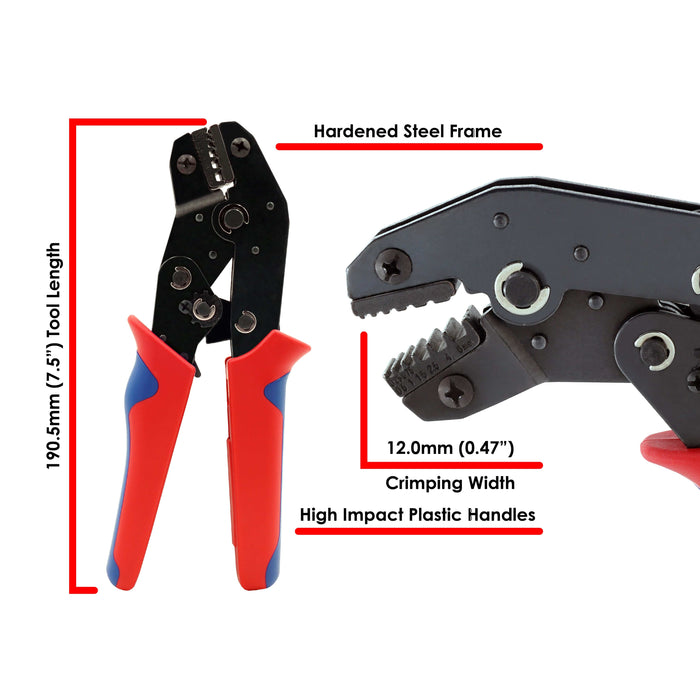

  • Tool Length: 7-1/2" Long
  • Crimping Mechanism: Ratchet Mechanism with Traditional Slotted Die Set
  • Side Loading
  • Hardened steel frame
  • Ergonomically designed handles with comfort grips.
  • Estimated life span of <50,000 crimp cycles
  • Calibrated at factory for immediate out-of-the-box use
  • Tension adjustment knob for longterm adjustment.
  • 1-Year Warranty*
  • RoHS Compliant

Cross References

Cross Reference Parts:
Burndy Hubbell: 10097823 YF2210TOOL
