3/8" Wire Rope Swage Sleeves, Oval Shape, Copper, 2 Pieces - FD710610

Ahorre 39% Ahorre 39%
Precio original $19.99
Precio original $19.99 - Precio original $19.99
Precio original $19.99
Precio actual $12.24
$12.24 - $12.24
Precio actual $12.24
SKU FD710610
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 2 Pieces
true

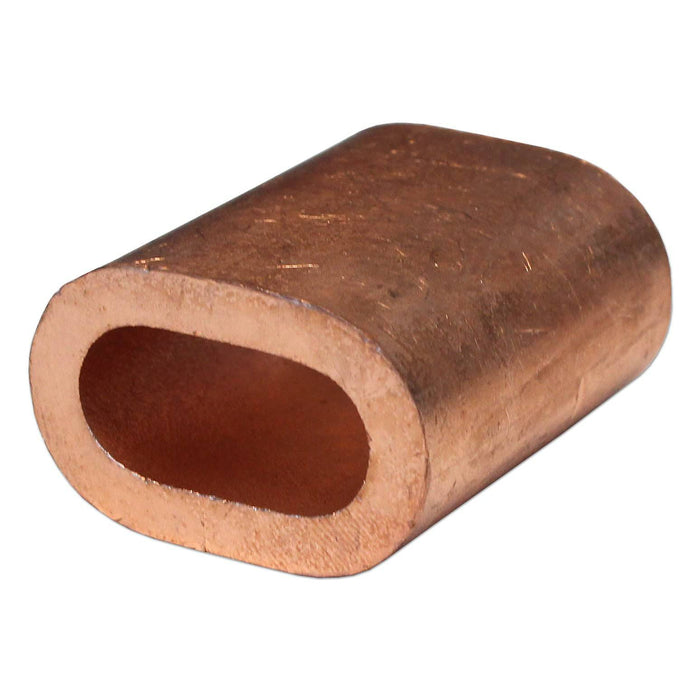

COPPER SWAGE SLEEVES: OVAL SHAPE

Swage Sleeves, also known as compression sleeves are used to enclose the ends of a wire/cable for various rigging needs. The sleeve is capable of being placed anywhere on the cable but is predominantly used at the ends. Available in copper, zinc-plated copper, and aluminum.


DIMENSIONS & FEATURES:

Wire Range: 3/8"
A: 1.37" (34.8mm)
B: 0.74" (18.9mm)
C: 1.19" (30.8mm)
Terminal Material: Copper
Temperature Rating: 75oC
Voltage Rating: 600 Volts
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None


Documents

Click to view product spec sheet:
