3/32" Wire Rope Swage Sleeves, Oval Shape, Copper, 25 Pieces - FD710625
Ahorre 37%
Precio original
$9.16
Precio original
$9.16
-
Precio original
$9.16
Precio original
$9.16
Precio actual
$5.80
$5.80
-
$5.80
Precio actual
$5.80
SKU FD710625
Disponibilidad:
en stock, listo para ser enviado

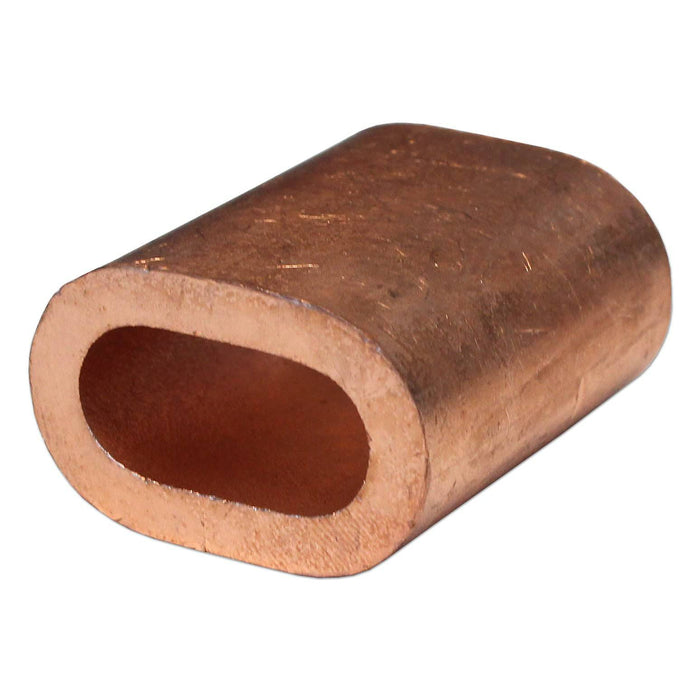

COPPER SWAGE SLEEVES: OVAL SHAPE
Swage Sleeves, also known as compression sleeves are used to enclose the ends of a wire/cable for various rigging needs. The sleeve is capable of being placed anywhere on the cable but is predominantly used at the ends. Available in copper, zinc-plated copper, and aluminum.
DIMENSIONS & FEATURES:
| Wire Range: | 3/32" |
| A: | 0.34" (8.85mm) |
| B: | 0.18" (4.77mm) |
| C: | 0.29" (7.59mm) |
| Terminal Material: | Copper |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
