FDFNS1-250 - 22 to 16 AWG Nylon Insulated Quick Disconnects, Female, Fully Insulated, 100 Pieces
Precio original
$14.30
-
Precio original
$14.30
Precio original
$14.30
$14.30
-
$14.30
Precio actual
$14.30
SKU FDFNS1-250
Quantity: 100 Pieces
Disponibilidad:
en stock, listo para ser enviado
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| W: | 6.6mm (0.26") |
| F: | 7.9mm (0.31") |
| L: | 22.5mm (0.89") |
| B: | 11.2mm (0.44") |
| D: | 4.4mm (0.17") |
| T: | 0.5mm (0.02") |
| Nema Tab: | 0.8 x 6.35mm (0.032 x 0.250") |
| Material: | Tin-Plated Brass |
| Max Electrical Rating: | 105°C - 300 Volts |
| Max Electrical Current: | 10A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |

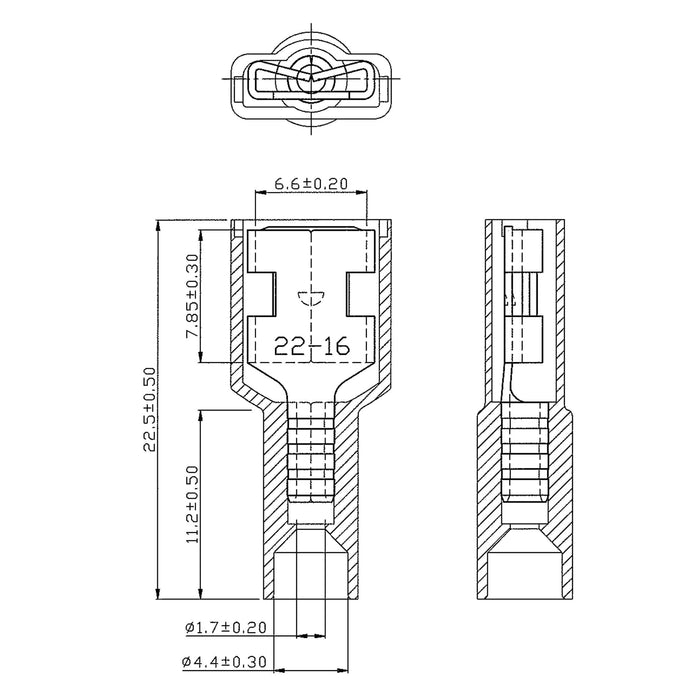

Product Drawing:
Cross References
Cross Reference Parts:None
