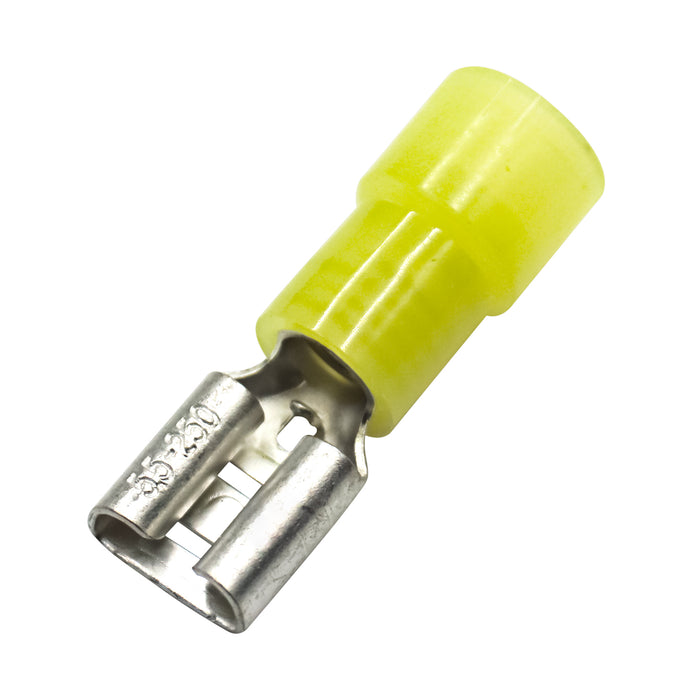

FDNY5-250M - 12 to 10 AWG Nylon Insulated Quick Disconnects, Female, Yellow, 50 Pieces
Agotado
Precio original
$5.18
-
Precio original
$5.18
Precio original
$5.18
$5.18
-
$5.18
Precio actual
$5.18
SKU FDNY5-250M
Quantity: 50 Pieces
Disponibilidad:
Agotado
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
| Wire Size: | 12 to 10 AWG |
| Color: | Yellow |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.8 x 6.35mm (0.03 x 0.25") |
| Temperature Rating: | 75°C |
| Voltage Rating: | 300 Volts |
| Max Electrical Rating: | 24 AMP |
| T: | 0.40mm (0.02") |
| L: | 23.5mm (0.93") |
| F: | 7.5mm (0.30") |
| B: | 13.0mm (0.51") |
| W: | 6.6mm (0.26") |
| D: | 6.3mm (0.25") |
| C: | 3.4mm (0.13") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
