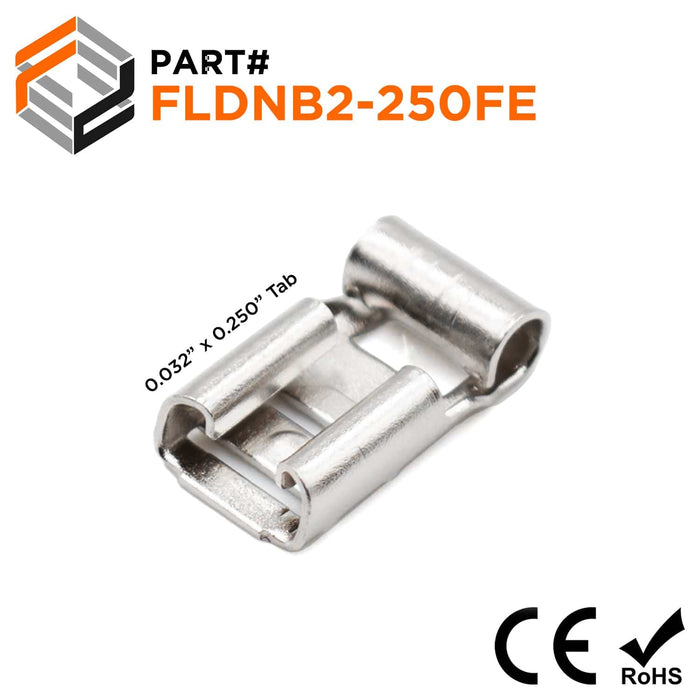

FLDNB2-250FE - Stainless Steel Flag Quick Disconnects - 16-14 AWG - High Temperature - Nickel Plated
Precio original
$5.61
-
Precio original
$5.61
Precio original
$5.61
$5.61
-
$5.61
Precio actual
$5.61
SKU FLDNB2-250FE
Disponibilidad:
en stock, listo para ser enviado
Non insulated flag quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Terminal Material: | Nickel Plated Steel |
| Nema Tab: | 0.8 x 6.35mm (0.03 x 0.25") |
| Max Electrical Rating: | 10-15 AMP |
| L: | 14.0mm (0.55") |
| F: | 8.5mm (0.33") |
| W: | 6.6mm (0.26") |
| D: | 7.2mm (0.28") |
| D1: | 2.2mm (0.08") |
| D2: | 2.7mm (0.11") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!
