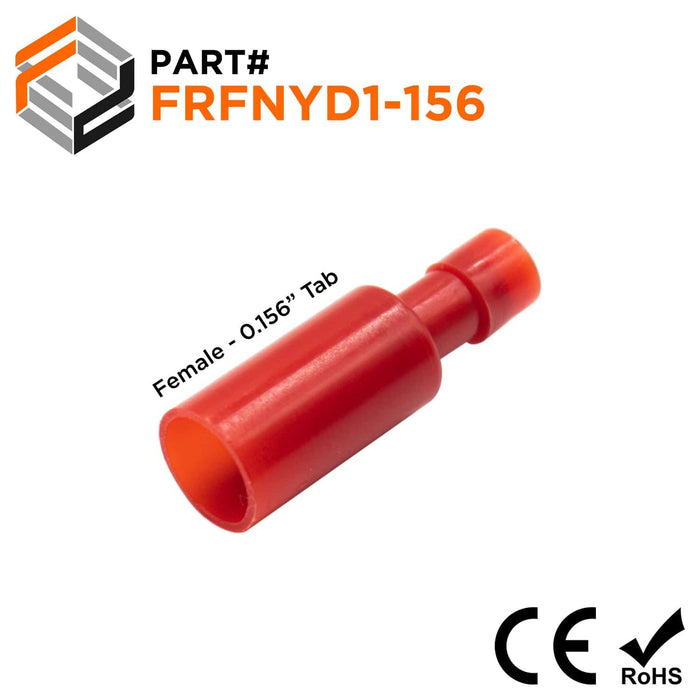

FRFNYD1-156 - Nylon Fully Insulated Female Bullet Connector - Double Crimp - 22-16 AWG
Precio original
$14.60
-
Precio original
$14.60
Precio original
$14.60
$14.60
-
$14.60
Precio actual
$14.60
SKU FRFNYD1-156
Disponibilidad:
en stock, listo para ser enviado

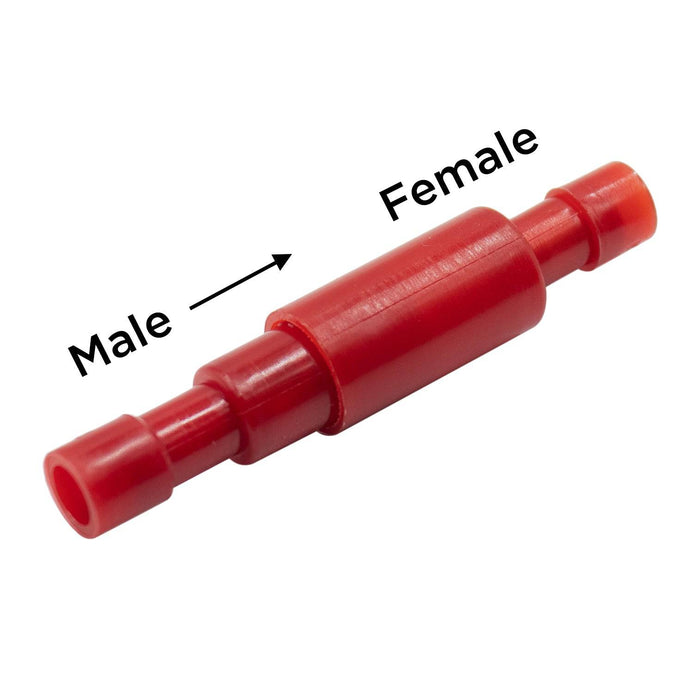

Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on. Double crimp terminals are built with an additional inner copper barrel which:
Substantially reduces the strain on the wire strands.
Transfers strain to the wire jacket.
Provides a stronger connection.
Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present
Product Drawing:
None:
| Wire Range: | 22-16 AWG |
| W: | 0.15" (3.9mm) |
| F: | 0.27" (7.0mm) |
| L: | 0.99" (25.2mm) |
| B: | 0.43" (11.0mm) |
| D: | 0.16" (4.0mm) |
| T: | 0.01" (0.4mm) |
| Terminal Material: | Brass |
| Insulation Material: | Nylon |
| Insulation Color: | Red |
| Temperature Rating: | 105oC - 600 Volts |
| Max AMP Rating: | 10 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
