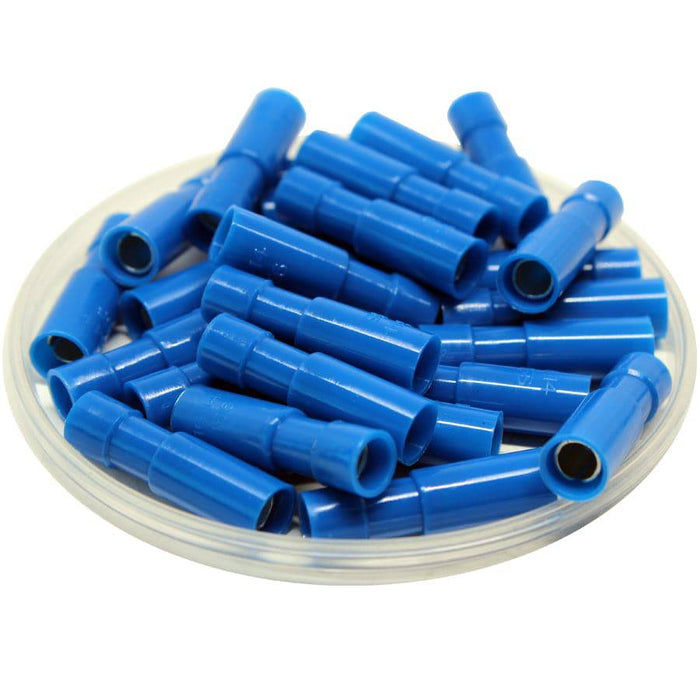

FRFNYD2-156 - Nylon Fully Insulated Female Bullet Connector - Double Crimp - 16-14 AWG

Precio original $13.06 - Precio original $13.06
Precio original
$13.06
$13.06 - $13.06
Precio actual $13.06
SKU FRFNYD2-156
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
true
Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on. Double crimp terminals are built with an additional inner copper barrel which:
  • Substantially reduces the strain on the wire strands.
  • Transfers strain to the wire jacket.
  • Provides a stronger connection.
  • Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present

    Wire Range: 16-14 AWG
    W: 0.15" (3.9mm)
    F: 0.27" (7.0mm)
    L: 0.99" (25.2mm)
    B: 0.43" (11.0mm)
    D: 0.17" (4.5mm)
    T: 0.01" (0.4mm)
    Terminal Material: Brass
    Insulation Material: Nylon
    Insulation Color: Blue
    Temperature Rating: 105oC - 600 Volts
    Max AMP Rating: 15 AMP
    UL Recgonized: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:

    Cross References

    Cross Reference Parts:
    None:
