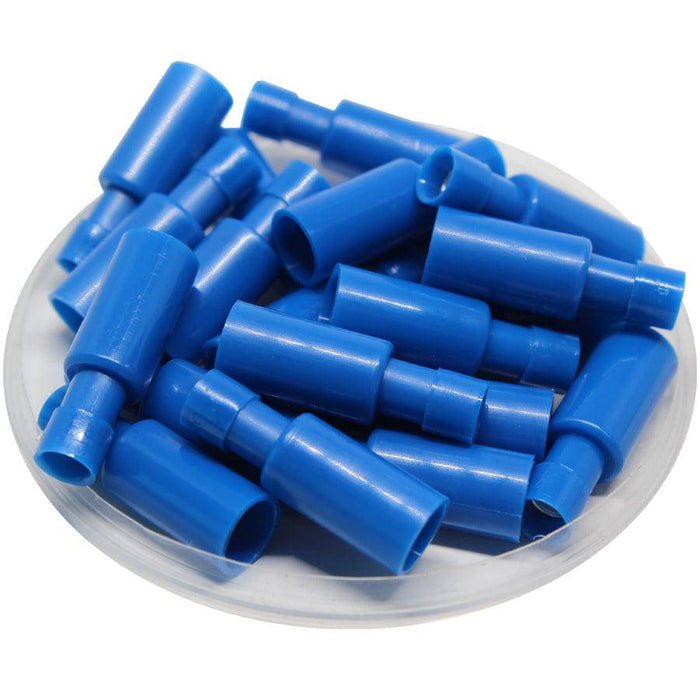

FRFNYD2-195 - Nylon Fully Insulated Female Bullet Connector - Double Crimp - 16-14 AWG

Precio original $15.30 - Precio original $15.30
Precio original
$15.30 - $15.30
Precio actual $15.30
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on. Double crimp terminals are built with an additional inner copper barrel which:
  • Substantially reduces the strain on the wire strands.
  • Transfers strain to the wire jacket.
  • Provides a stronger connection.
  • Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

    Wire Range: 16-14 AWG
    W: 0.19" (4.9mm)
    F: 0.27" (7.0mm)
    L: 1.04" (26.5mm)
    B: 0.43" (11.0mm)
    D: 0.17" (4.5mm)
    C: 0.01" (0.4mm)
    Terminal Material: Brass
    Insulation Material: Nylon
    Insulation Color: Blue
    Temperature Rating: 105oC - 600 Volts
    Max AMP Rating: 15 AMP
    UL Recgonized: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:
