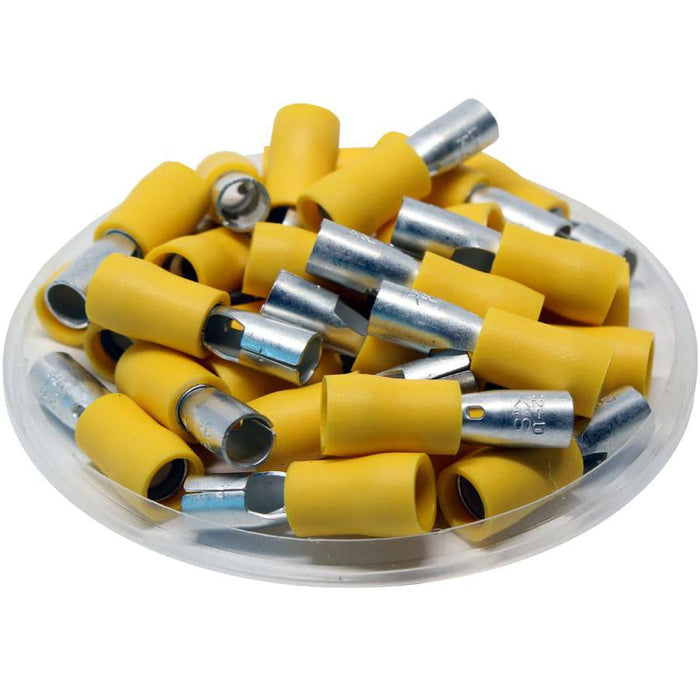

FRSD5-195 - Vinyl Insulated Female Double Crimp Bullet Connectors - 12-10 AWG
Precio original
$12.03
-
Precio original
$12.03
Precio original
$12.03
$12.03
-
$12.03
Precio actual
$12.03
SKU FRSD5-195
Disponibilidad:
en stock, listo para ser enviado
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on. Double crimp terminals are built with an additional inner copper barrel which:
Substantially reduces the strain on the wire strands.
Transfers strain to the wire jacket.
Provides a stronger connection.
Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Product Drawing:
None:
| Wire Range: | 12-10 AWG |
| C: | 0.13" (3.4mm) |
| L: | 0.96" (24.5mm) |
| F: | 0.28" (7.0mm) |
| B: | 0.43" (11.0mm) |
| W: | 0.19" (4.9mm) |
| D: | 0.24" (6.2mm) |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Vinyl |
| Insulation Color: | Yellow |
| Temperature Rating: | 105oC - 600 Volts |
| Max AMP Rating: | 50 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
