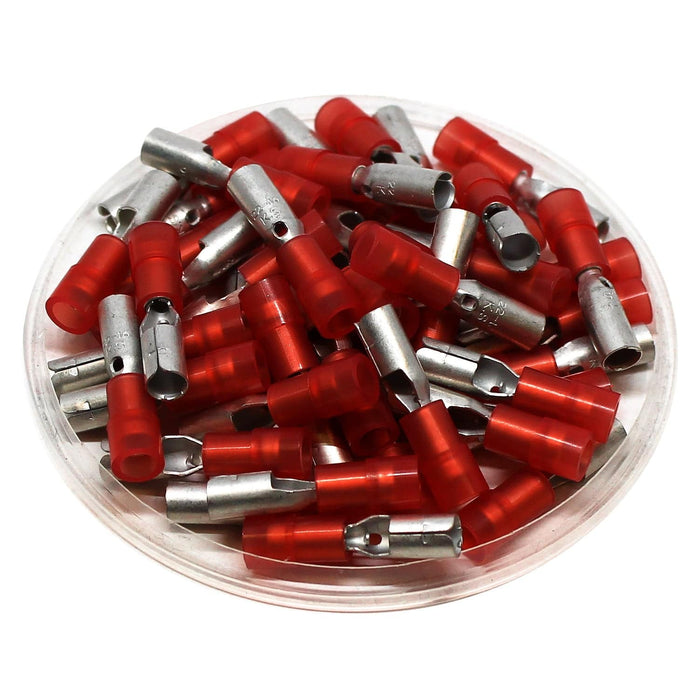

FRSNY1-156 - Nylon Insulated Female Bullet Connectors - 22-16 AWG
Precio original
$12.36
-
Precio original
$12.36
Precio original
$12.36
$12.36
-
$12.36
Precio actual
$12.36
SKU FRSNY1-156
Disponibilidad:
en stock, listo para ser enviado
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Product Drawing:
None:
| Wire Range: | 22-16 AWG |
| C: | 0.07" (1.7mm) |
| L: | 0.89" (22.5mm) |
| F: | 0.28" (7.0mm) |
| B: | 0.43" (11.0mm) |
| W: | 0.15" (3.9mm) |
| D: | 0.16" (4.0mm) |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Nylon |
| Insulation Color: | Red |
| Temperature Rating: | 105oC |
| Max AMP Rating: | 10 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
