22 to 14 AWG Barrier Strip w/ Wire Protection - 300v, 15A, 12 Poles, 8mm Pitch #GT1450HB-8

Precio original $1.85 - Precio original $1.85
Precio original
$1.85
$1.85 - $1.85
Precio actual $1.85
SKU GT1450HB-8
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece

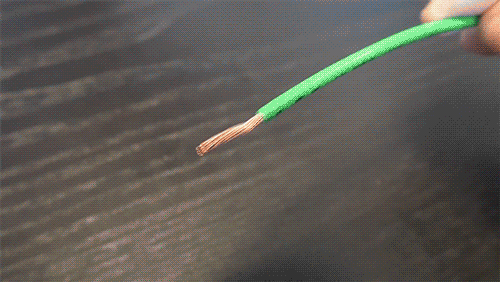

Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule is encouraged to prevent the wire from fraying.

Dimensions & Features:

Wire AWG: 22-12 AWG
Stripping Length: 7-8mm
Pitch: 8mm (0.31")
A: 92.7mm (3.64")
B: 17.7mm (0.70")
C: 15.5mm (0.61")
D: 8.0mm (0.31")
E: 3.0mm (0.12")
F: 5.5mm (0.22")
Number of Poles: 12 Poles
Wire Protector: Yes
Material: Polyamide (PA66)
Electrical Rating: 300 Volts
Amp Rating: 20AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
