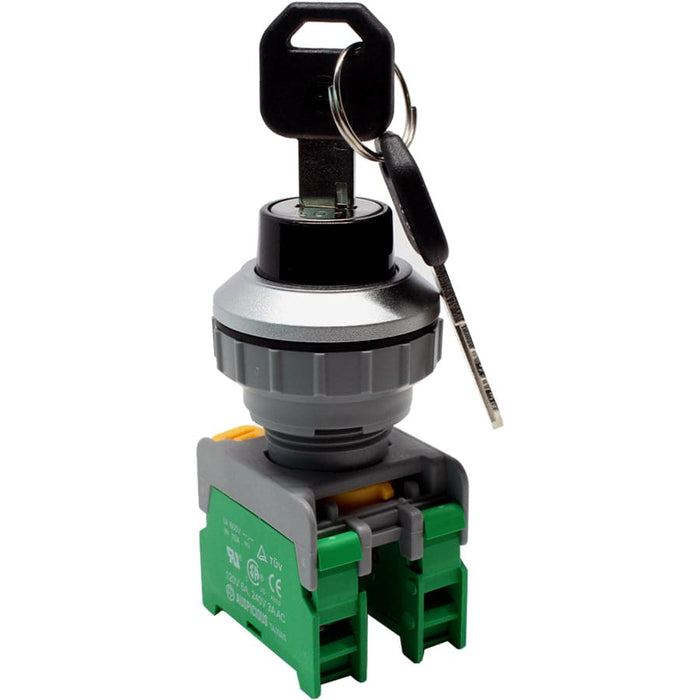

KS30-2/O-BK - Drawable Key Switch - 2 Contact (2/O) - 3 Positions (1-0-2) - Black

Precio original $15.28 - Precio original $15.28
Precio original
$15.28
$15.28 - $15.28
Precio actual $15.28
SKU KS30-2O-BK
Disponibilidad:
en stock, listo para ser enviado
Key switches operate much like twist knob switches. However the switch cannot be accessed without the key. Once the key is inserted, you simply need to turn it in order to open/close your electrical circuit connection. Then release it back to its default position to close/open it again.

Dimensions & Features:

Type: Key Selector Switch
Mounting Hole Size: 30mm
Color: Black
Type of Contact: 2/O
Number of Contacts: 2
Positions: 1-0-2
Voltage Rating: 240V
Enclosure Material: Reinforced Thermoplastic
Contact Material: Silver
Protection Degree: IP 65
Storage Temperature: -40oC to 80oC
Operating Temperature: -25oC to 70oC
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Cross References

Cross Reference Parts:

None
