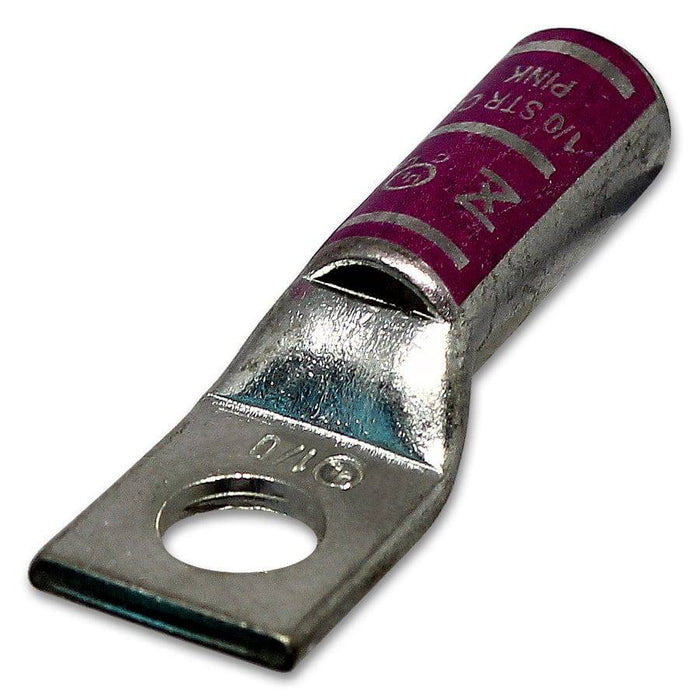

LB1012 - 1/0 AWG Long Compression Lug - 1/2" Stud Size

Precio original $2.39 - Precio original $2.39
Precio original
$2.39
$2.39 - $2.39
Precio actual $2.39
SKU LB1012
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
true
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 1/0 AWG
Stud Size: 1/2"
Color: Pink
L: 64.8mm (2.55")
L1: 28.7mm (1.13")
D: 18.4mm (0.72")
D1: 12.9mm (0.51")
D2: 10.1mm (0.40")
B: 29.8mm (1.17")
E: 13.1mm (0.51")
F: 2.7mm (0.10")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35 KV
Max Amp Rating: 230A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
