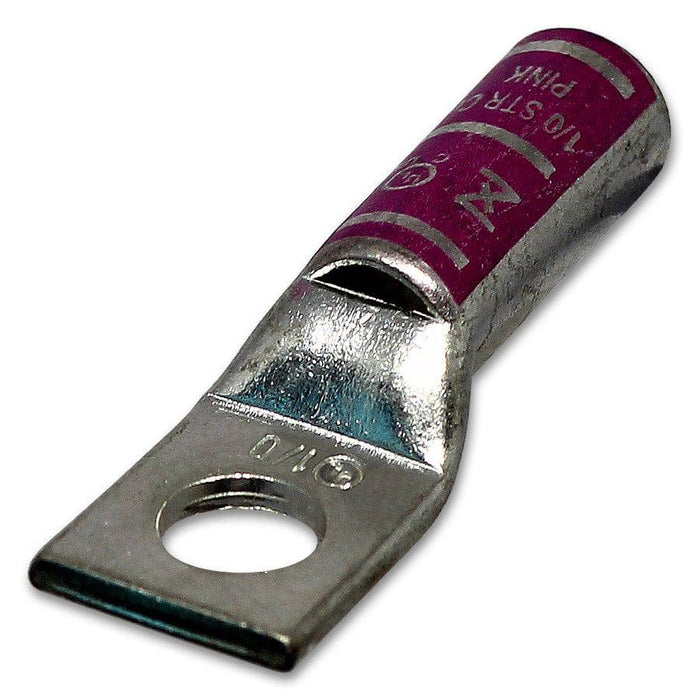

LB1014 - 1/0 AWG Long Compression Lug - 1/4" Stud Size

Precio original $2.17 - Precio original $2.17
Precio original
$2.17
$2.17 - $2.17
Precio actual $2.17
SKU LB1014
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 1/0 AWG
Stud Size: 1/4"
Color: Pink
L: 54.6mm (2.15")
L1: 18.4mm (0.72")
D: 18.4mm (0.72")
D1: 12.9mm (0.51")
D2: 10.1mm (0.40")
B: 29.8mm (1.17")
E: 7.1mm (0.28")
F: 2.7mm (0.10")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35 KV
Max Amp Rating: 230A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:


Videos

Check out our YouTube channel!
