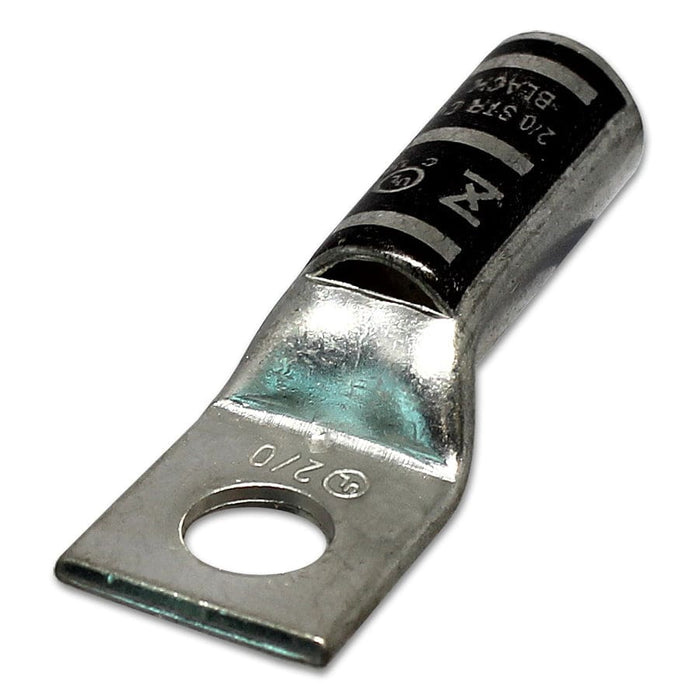

LB2058 - 2/0 AWG Long Compression Lug - 5/8" Stud Size - LB2058
Precio original
$2.49
-
Precio original
$2.49
Precio original
$2.49
$2.49
-
$2.49
Precio actual
$2.49
SKU LB2058
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 2/0 AWG |
| Stud Size: | 5/8" |
| Color: | Black |
| L: | 68.5mm (2.70") |
| L1: | 31.7mm (1.25") |
| D: | 22.8mm (0.90") |
| D1: | 14.2mm (0.56") |
| D2: | 11.6mm (0.46") |
| B: | 30.4mm (1.20") |
| E: | 16.7mm (0.66") |
| F: | 2.2mm (0.09") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 265A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
