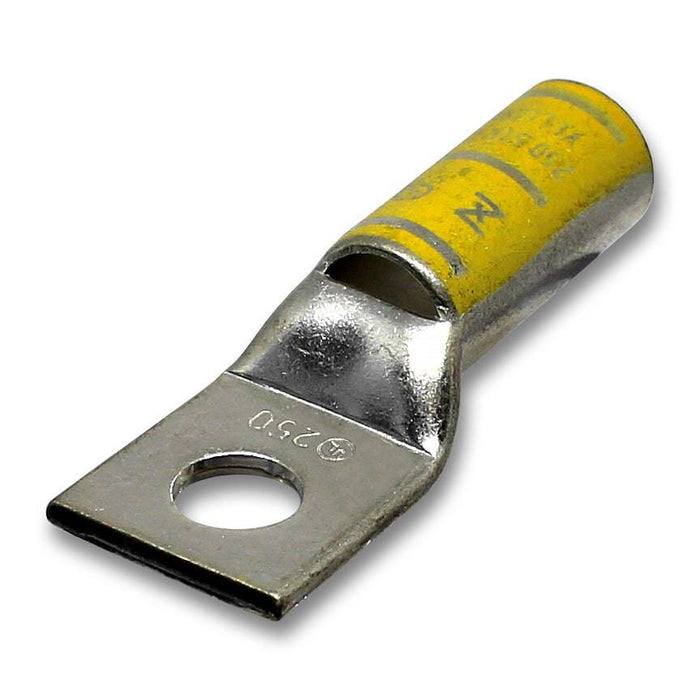

LB25058 - 250 MCM Long Compression Lug - 5/8" Stud Size

Precio original $4.95 - Precio original $4.95
Precio original
$4.95
$4.95 - $4.95
Precio actual $4.95
SKU LB25058
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 250MCM
Stud Size: 5/8"
Color: Yellow
L: 80.6mm (3.17")
L1: 31.7mm (1.25")
D: 27.9mm (1.10")
D1: 19.1mm (0.75")
D2: 16.0mm (0.63")
B: 40.0mm (1.57")
E: 16.7mm (0.66")
F: 3.0mm (0.11")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35 KV
Max Amp Rating: 405A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
