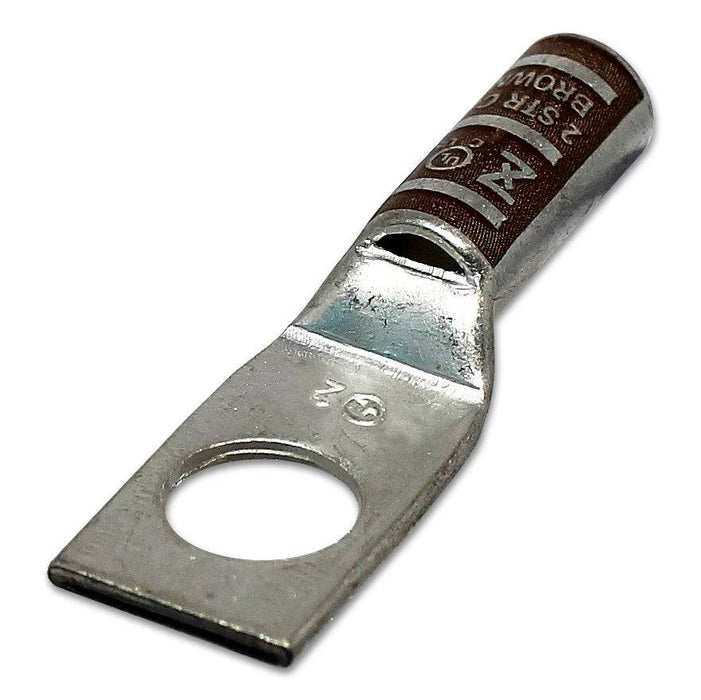

LB2516 - 2AWG Long Compression Lug - 5/16" Stud Size

Precio original $1.25 - Precio original $1.25
Precio original
$1.25
$1.25 - $1.25
Precio actual $1.25
SKU LB2516
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2 AWG
Stud Size: 5/16"
Color: Brown
L: 48.1mm (1.89")
L1: 19.1mm (0.75")
D: 15.8mm (0.62")
D1: 10.7mm (0.42")
D2: 8.5mm (0.33")
B: 24.5mm (0.96")
E: 8.7mm (0.34")
F: 2.1mm (0.08")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35 KV
Max Amp Rating: 170A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:
