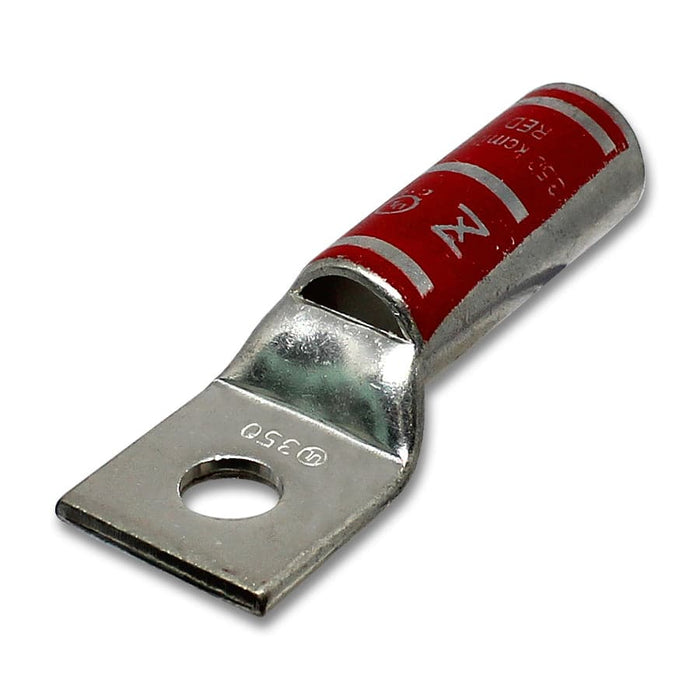

LB35038 - 350MCM Long Compression Lug - 3/8" Stud Size
Precio original
$5.41
-
Precio original
$5.41
Precio original
$5.41
$5.41
-
$5.41
Precio actual
$5.41
SKU LB35038
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 350MCM |
| Color: | Red |
| L: | 97.4mm (3.83") |
| L1: | 30.2mm (1.19") |
| D: | 32.5mm (1.27") |
| D1: | 22.2mm (0.87") |
| D2: | 18.2mm (0.71") |
| B: | 57.2mm (2.25") |
| E: | 10.4mm (0.41") |
| F: | 3.9mm (0.16") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 3/8" |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 505A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
