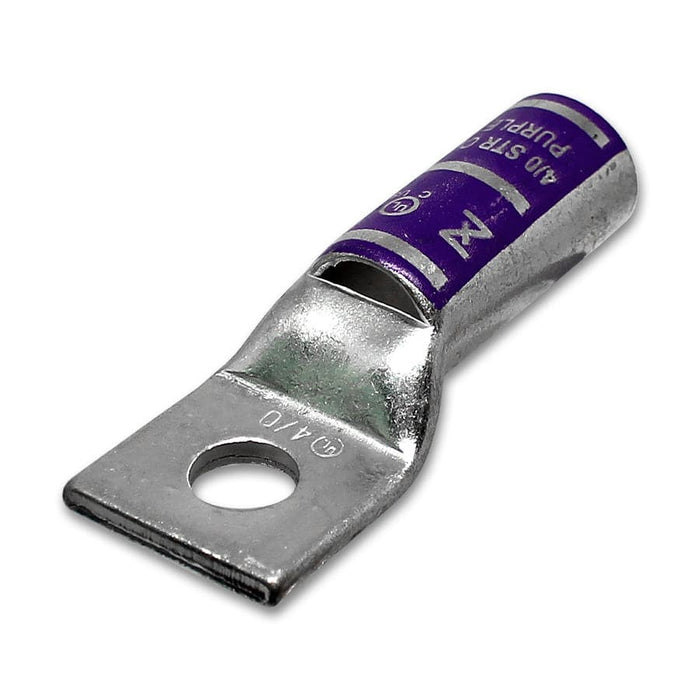

LB40516 - 4/0 AWG Long Compression Lug - 5/16" Stud Size

Precio original $3.90 - Precio original $3.90
Precio original
$3.90
$3.90 - $3.90
Precio actual $3.90
SKU LB40516
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 4/0 AWG
Stud Size: 5/16"
Color: Purple
L: 65.1mm (2.56")
L1: 19.1mm (0.75")
D: 25.4mm (1.00")
D1: 17.3mm (0.68")
D2: 14.2mm (0.56")
B: 37.2mm (1.40")
E: 8.7mm (0.34")
F: 3.0mm (0.12")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35 KV
Max Amp Rating: 230A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
