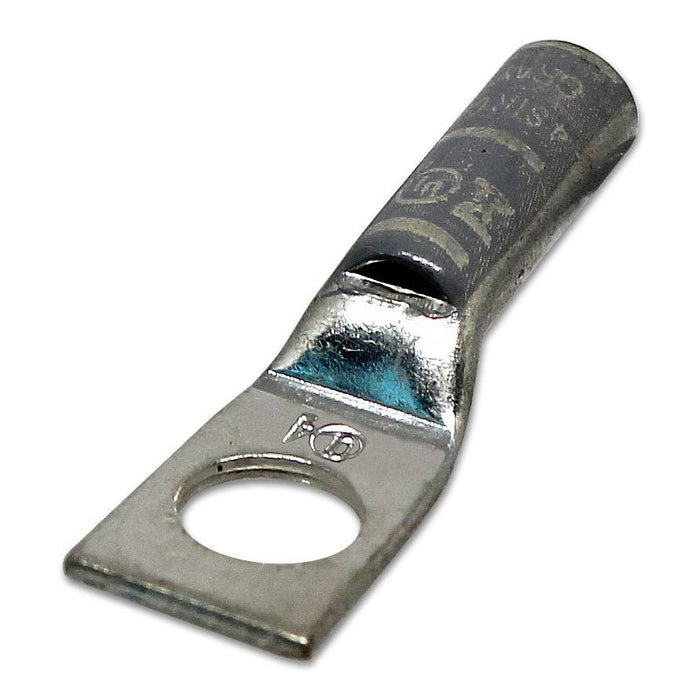

LB414 - 4AWG Long Compression Lug - 1/4" Stud Size
Precio original
$0.93
-
Precio original
$0.93
Precio original
$0.93
$0.93
-
$0.93
Precio actual
$0.93
SKU LB414
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 4 AWG |
| Stud Size: | 1/4" |
| Color: | Gray |
| L: | 45.1mm (1.77") |
| L1: | 18.4mm (0.72") |
| D: | 13.7mm (0.54") |
| D1: | 9.1mm (0.36") |
| D2: | 7.1mm (0.28") |
| B: | 22.8mm (0.90") |
| E: | 7.1mm (0.28") |
| F: | 1.8mm (0.07") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 85A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
