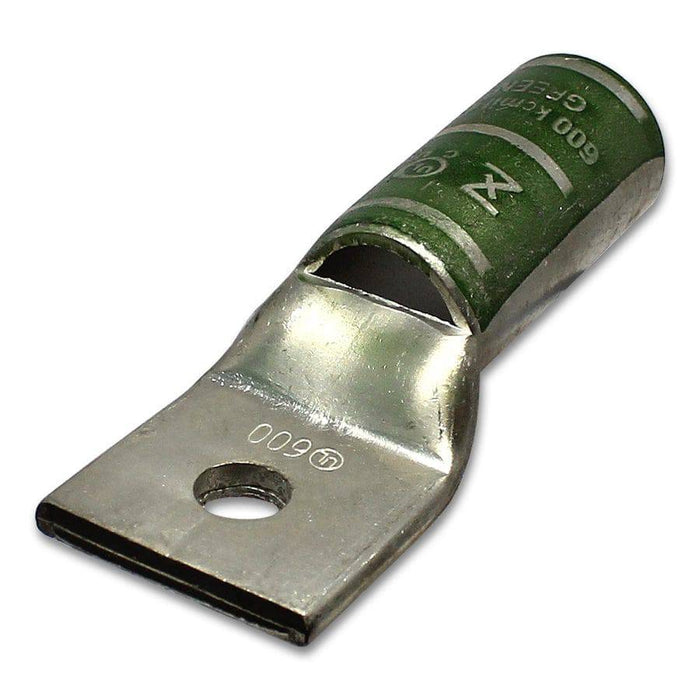

LB60012 - 600MCM Long Compression Lug - 1/2" Stud Size

Precio original $22.89 - Precio original $22.89
Precio original
$22.89
$22.89 - $22.89
Precio actual $22.89
SKU LB60012
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 600MCM
Stud Size: 1/2"
Color: Green
L: 112.5mm (4.43")
L1: 36.8mm (1.45")
D: 43.6mm (1.72")
D1: 30.1mm (1.18")
D2: 24.0mm (0.94")
B: 59.6mm (2.35")
E: 12.9mm (0.15")
F: 5.9mm (0.24")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35 KV
Max Amp Rating: 420A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
