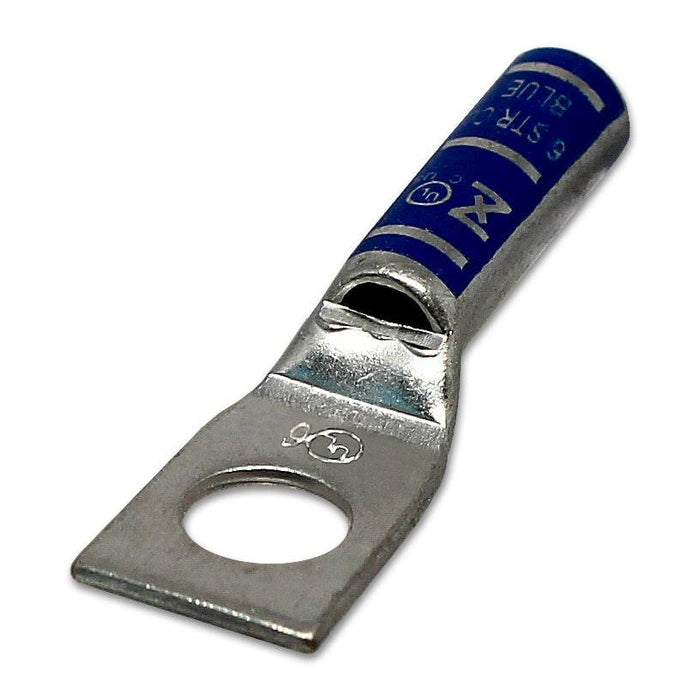

LB6516 - 6AWG Long Compression Lug - 5/16" Stud Size

Precio original $0.78 - Precio original $0.78
Precio original
$0.78
$0.78 - $0.78
Precio actual $0.78
SKU LB6516
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
true
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 6 AWG
Stud Size: 5/16"
Color: Blue
L: 45.1mm (1.77")
L1: 19.1mm (0.75")
D: 11.4mm (0.45")
D1: 7.9mm (0.31")
D2: 5.8mm (0.23")
B: 22.8mm (0.90")
E: 8.7mm (0.34")
F: 1.5mm (0.06")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35 KV
Max Amp Rating: 65A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
