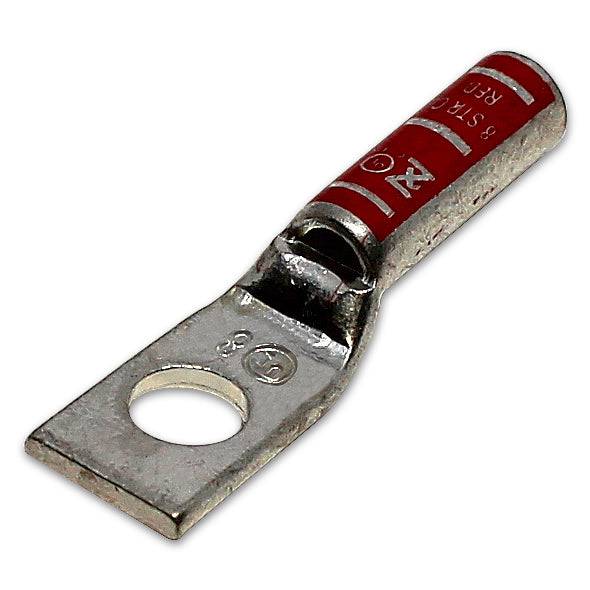

LB838 - 8AWG Long Compression Lug - 3/8" Stud Size

Precio original $0.72 - Precio original $0.72
Precio original
$0.72
$0.72 - $0.72
Precio actual $0.72
SKU LB838
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
true
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 8 AWG
Stud Size: 3/8"
Color: Red
L: 44.8mm (1.76")
L1: 21.0mm (0.83")
D: 15.2mm (0.60")
D1: 7.1mm (0.28")
D2: 4.8mm (0.19")
B: 20.5mm (0.81")
E: 10.4mm (0.41")
F: 1.4mm (0.05")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35 KV
Max Amp Rating: 50A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
