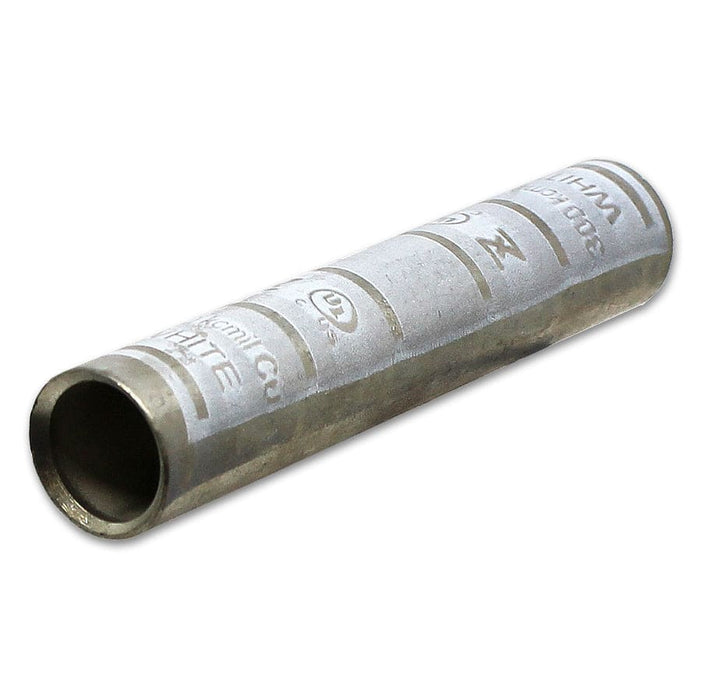

LC300 - 300MCM Long Barrel Splice - White
Precio original
$8.08
-
Precio original
$8.08
Precio original
$8.08
$8.08
-
$8.08
Precio actual
$8.08
SKU LC300
Disponibilidad:
en stock, listo para ser enviado
Long barrel splices are used to secure and protect wire-to-wire connections. These two-way connectors provide a high quality connection, high conductivity, and high pullout values.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 300MCM |
| Color: | White |
| L: | 104.6mm (4.12") |
| D: |
20.9mm (0.82") |
| D1: | 17.1mm (0.67") |
| Barrel: | Seamless |
| Material: | Tin Plated Copper |
| Voltage Rating: | 600V |
| Max Electrical Current: | 285 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
