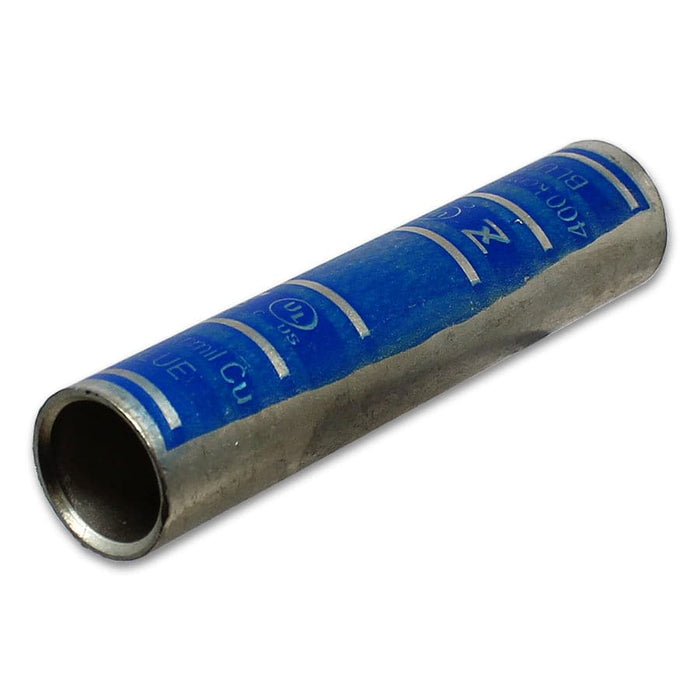

LC400 - 400MCM Long Barrel Splice - Blue
Precio original
$10.80
-
Precio original
$10.80
Precio original
$10.80
$10.80
-
$10.80
Precio actual
$10.80
SKU LC400
Disponibilidad:
en stock, listo para ser enviado
Long barrel splices are used to secure and protect wire-to-wire connections. These two-way connectors provide a high quality connection, high conductivity, and high pullout values.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 400MCM |
| Color: | Blue |
| L: | 110.9mm (4.37") |
| D: |
24mm (0.94") |
| D1: | 19.8mm (0.78") |
| Barrel: | Seamless |
| Material: | Tin Plated Copper |
| Voltage Rating: | 600V |
| Max Electrical Current: | 335 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!
