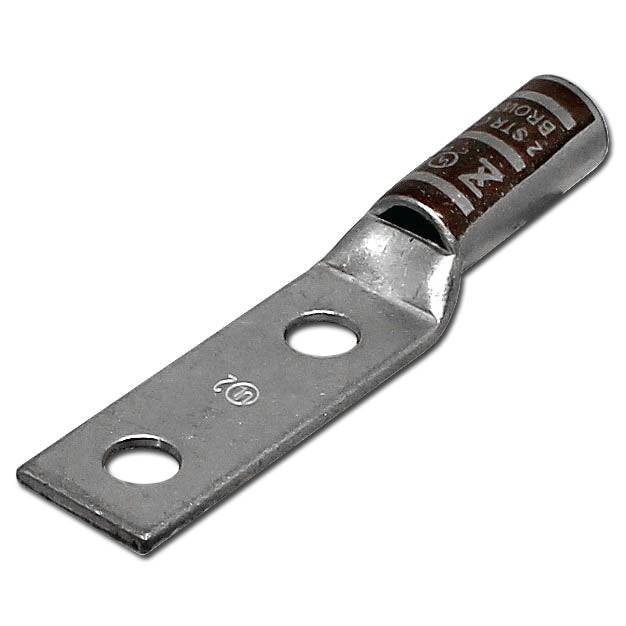

LT214A - 2 AWG Compression Lug - 1/4" Stud Size
Precio original
$1.83
-
Precio original
$1.83
Precio original
$1.83
$1.83
-
$1.83
Precio actual
$1.83
SKU LT214A
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 2 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Brown |
| L: | 64.6mm (2.55") |
| L1: | 35.6mm (1.40") |
| L2: | 19.1mm (0.75") |
| D: | 15.9mm (0.63") |
| D1: | 10.8mm (0.43") |
| D2: | 8.5mm (0.34") |
| B: | 24.5mm (0.97") |
| E: | 7.1mm (0.28") |
| F: | 2.2mm (0.09") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 170A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
