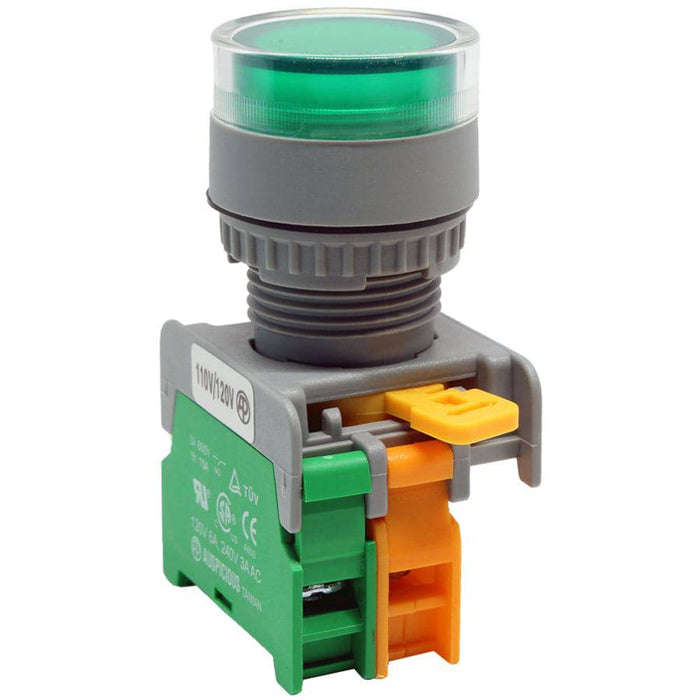

LXG22-1/O-GN - Illuminated Push Button - 1 Contact (1/O) - 22mm - 110V - Green

Precio original $7.80 - Precio original $7.80
Precio original
$7.80 - $7.80
Precio actual $7.80
en stock, listo para ser enviado
Illuminated guarded push buttons light up and glow in their respective color. They also feature a plastic dome guard around the button that must be removed in order for it to be pushed. This makes it especially suited for an ���Emergency Stop��� button as it cannot be accidentally pressed. To use, simply push the button down to open/close your electrical circuit connection and release the button to close/open it.

Dimensions & Features:

Type: Illuminated Guarded Push Button
Mounting Hole Size: 22mm
Color: Green
Type of Contact: 1/O
Number of Contact: 1
Voltage Rating: 110V
Enclosure Material: Reinforced Thermoplastic
Contact Material: Silver
Protection Degree: IP 65
Storage Temperature: -40oC to 80oC
Operating Temperature: -25oC to 70oC
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
