MDFNS2-250 - Nylon Male Quick Disconnect - 16-14 AWG - Blue

Precio original $12.06 - Precio original $12.06
Precio original
$12.06
$12.06 - $12.06
Precio actual $12.06
SKU MDFNS2-250
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Size: 16-14 AWG
Color: Blue
W: 6.35mm (0.25")
F: 7.7mm (0.3")
L: 24.6mm (0.97")
B: 12.1mm (0.48")
D: 4.5mm (0.18")
T: 0.8mm (0.03")
Nema Tab: 0.8 x 6.35mm (0.032 x .250")
Material: Tin-Plated Brass
Max Electrical Rating: 105°C - 300 Volts
Max Electrical Current: 10A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

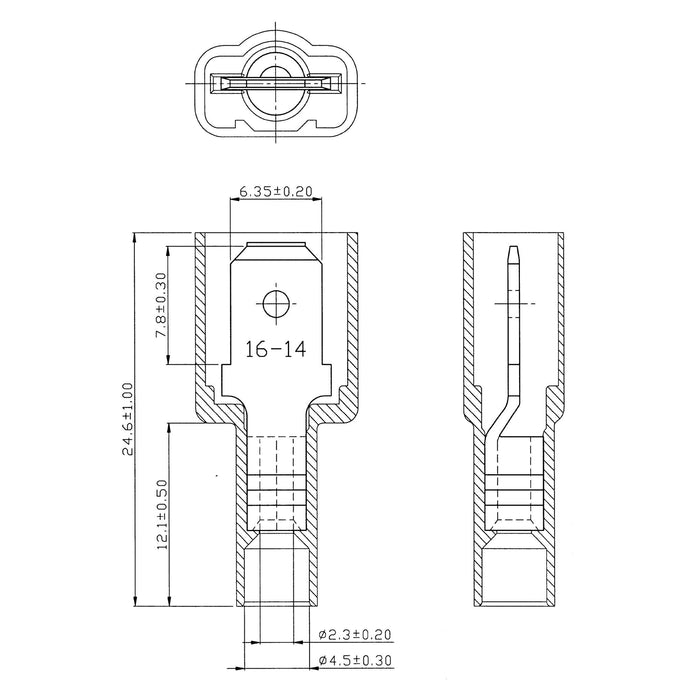

Product Drawing:

Cross References

Cross Reference Parts:
None


Documents

Click to view product spec sheet:
