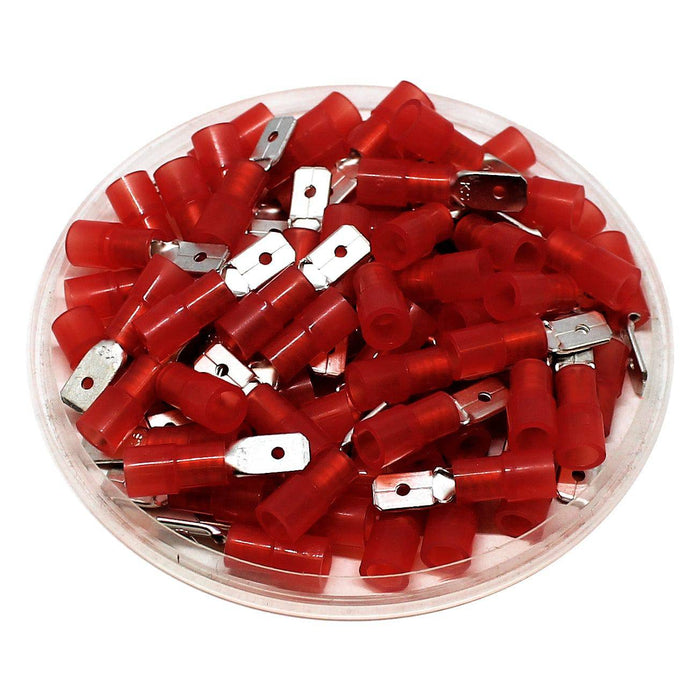

MDNYD1-187(5) - Nylon Insulated Male Quick Disconnect - Double Crimp - 22-16 AWG
Precio original
$9.92
-
Precio original
$9.92
Precio original
$9.92
$9.92
-
$9.92
Precio actual
$9.92
SKU MDNYD1-187(5)
Disponibilidad:
en stock, listo para ser enviado
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Wire Size: | 22-16 AWG |
Color: | Red |
W: | 4.8mm (0.19") |
F: | 6.5mm (0.26") |
L: | 20mm (0.79") |
B: | 11mm (0.43") |
D: | 4.0mm (0.16") |
C: | 1.7mm (0.07") |
Nema Tab: | 0.5 x 4.8mm (0.020 x 0.187") |
Terminal Material: | Brass (with copper sleeve) |
Insulation Material: | Nylon |
Electrical Rating: | 105°C - 600 Volts |
Amp Rating: | 10AMP |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
