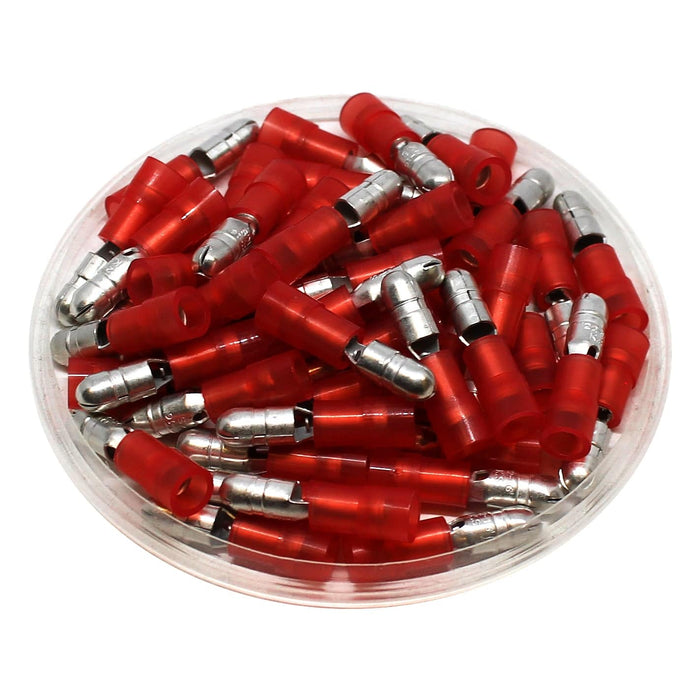

MPNYD1-180 - Nylon Insulated Male Double Crimp Bullet Connectors - 22-16 AWG

Precio original $15.02 - Precio original $15.02
Precio original
$15.02
$15.02 - $15.02
Precio actual $15.02
SKU MPNYD1-180
Disponibilidad:
en stock, listo para ser enviado
Pack Quantity: 100 Pieces
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Wire Range: 22-16 AWG
C: 0.07" (1.7mm)
L: 0.87" (22.0mm)
F: 0.36" (8.5mm)
B: 0.43" (11.0mm)
W: 0.18" (4.5mm)
D: 0.16" (4.0mm)
NEMA Tab 0.180" (4.5mm)
Terminal Material: Tin-Plated Brass
Insulation Material: Nylon
Insulation Color: Red
Temperature Rating: 105oC
Max AMP Rating: 10 AMP
UL Recgonized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:
